1. Consider the system of two degrees of freedom shown: a. Write down the equations of motion of the system. b. evaluate
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. Consider the system of two degrees of freedom shown: a. Write down the equations of motion of the system. b. evaluate

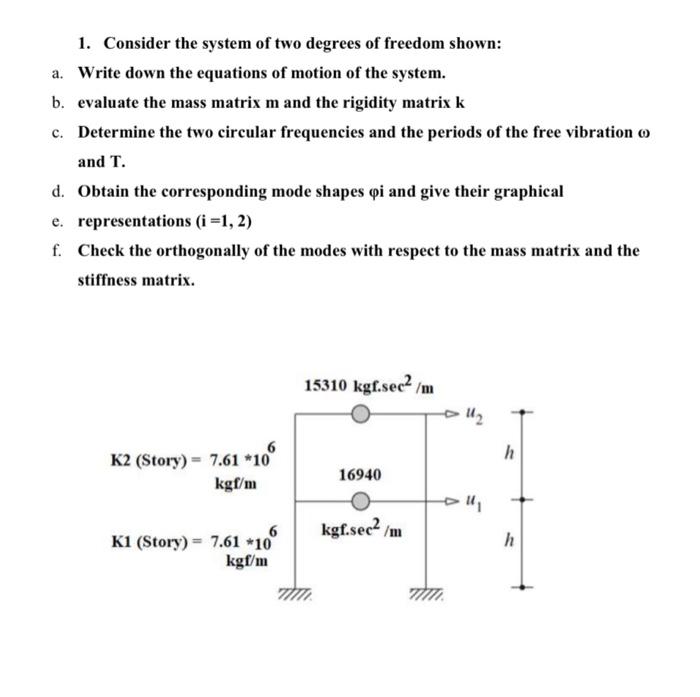

1. Consider the system of two degrees of freedom shown: a. Write down the equations of motion of the system. b. evaluate the mass matrix m and the rigidity matrix k c. Determine the two circular frequencies and the periods of the free vibration o and T. d. Obtain the corresponding mode shapes qi and give their graphical e. representations (i=1, 2) f. Check the orthogonally of the modes with respect to the mass matrix and the stiffness matrix. 15310 kgf.sec/m h K2 (Story) - 7.61 *10° +10 kgf/m 16940 kgf.sec? /m 6 K1 (Story) = 7.61 *10 kgf/m h
