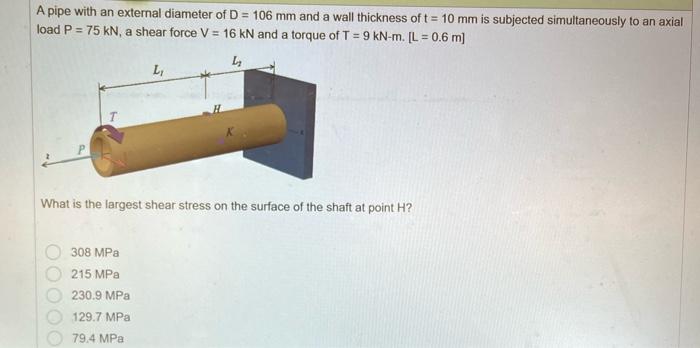

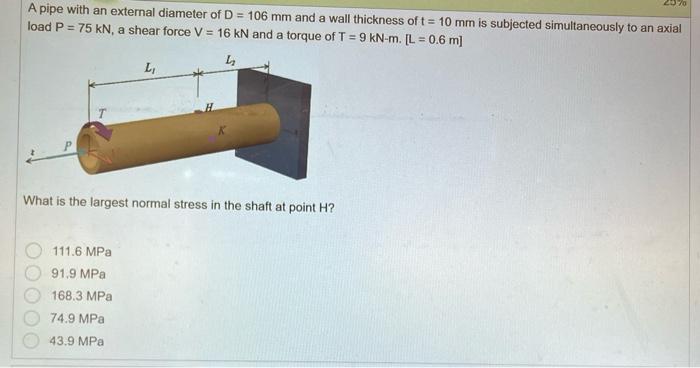

A pipe with an external diameter of D = 106 mm and a wall thickness of t = 10 mm is subjected simultaneously to an axial load P = 75 kN, a shear force V = 16 kN and a torque of T = 9 kN-m. [L = 0.6 m) 4 L What is the largest shear stress on the surface of the shaft at point H? 308 MPa 215 MPa 230.9 MPa 129.7 MPa 79.4 MPa

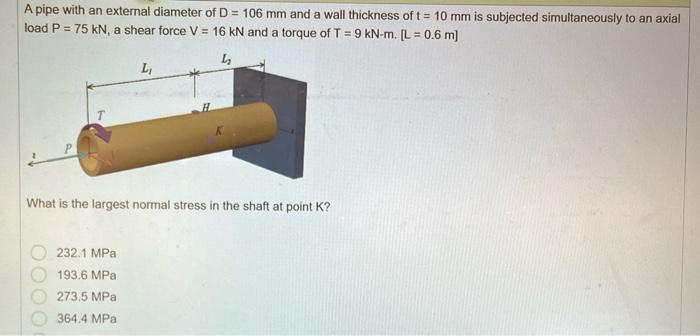

A pipe with an external diameter of D = 106 mm and a wall thickness of t = 10 mm is subjected simultaneously to an axial load P = 75 kN, a shear force V = 16 kN and a torque of T = 9 kN-m. [L = 0.6 m) L L What is the largest normal stress in the shaft at point K? 232.1 MPa 193.6 MPa 273.5 MPa 364.4 MPa

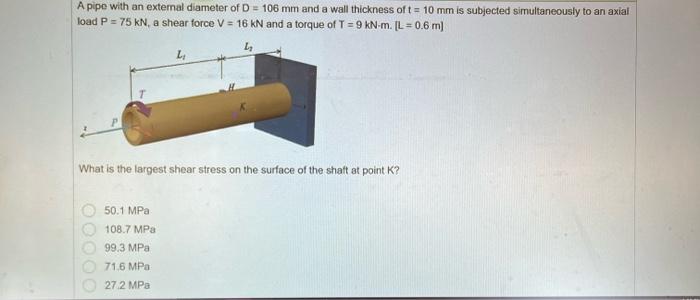

A pipe with an external diameter of D = 106 mm and a wall thickness of t = 10 mm is subjected simultaneously to an axial load P = 75 kN, a shear force V = 16 KN and a torque of T = 9 kN-m. [L = 0.6 m) L; What is the largest shear stress on the surface of the shaft at point K? 50.1 MPa 108.7 MPa 99.3 MPa 71.6 MPa 27 2 MPa
