The cantilever beam shown in figure (2) supports the roof of a workshop shed “no-ceiling”. Design the lightest steel W-s

Post by answerhappygod »

The Cantilever Beam Shown In Figure 2 Supports The Roof Of A Workshop Shed No Ceiling Design The Lightest Steel W S 1
The Cantilever Beam Shown In Figure 2 Supports The Roof Of A Workshop Shed No Ceiling Design The Lightest Steel W S 1 (25.22 KiB) Viewed 28 times

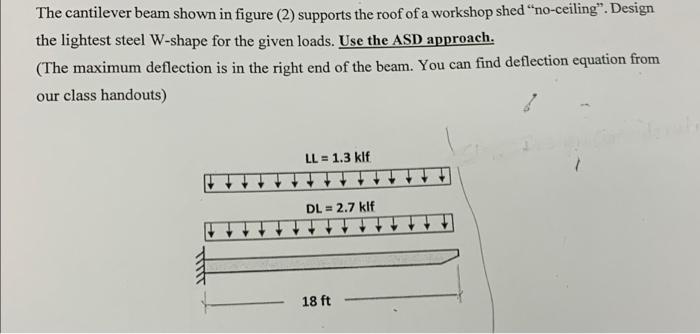

The cantilever beam shown in figure (2) supports the roof of a workshop shed “no-ceiling”. Design the lightest steel W-shape for the given loads. Use the ASD approach. (The maximum deflection is in the right end of the beam. You can find deflection equation from our class handouts) LL = 1.3 klf DL = 2.7 kif 18 ft
