Questions 20 and 21 are corresponding
20). The 1-in.-diameter rod is subjected to the loads
shown. Determine the normal stress (psi) at point B
21).The 1-in.-diameter rod is subjected to the loads shown.
Determine the shear stress (psi) at point B
DO NOT REPOST INCORRECT SOLUTIONS
DO NOT REPOST INCORRECT SOLUTIONS
Questions 20 And 21 Are Corresponding 20 The 1 In Diameter Rod Is Subjected To The Loads Shown Determine The Normal 1 (51.65 KiB) Viewed 38 times
Questions 20 And 21 Are Corresponding 20 The 1 In Diameter Rod Is Subjected To The Loads Shown Determine The Normal 2 (33.83 KiB) Viewed 38 times

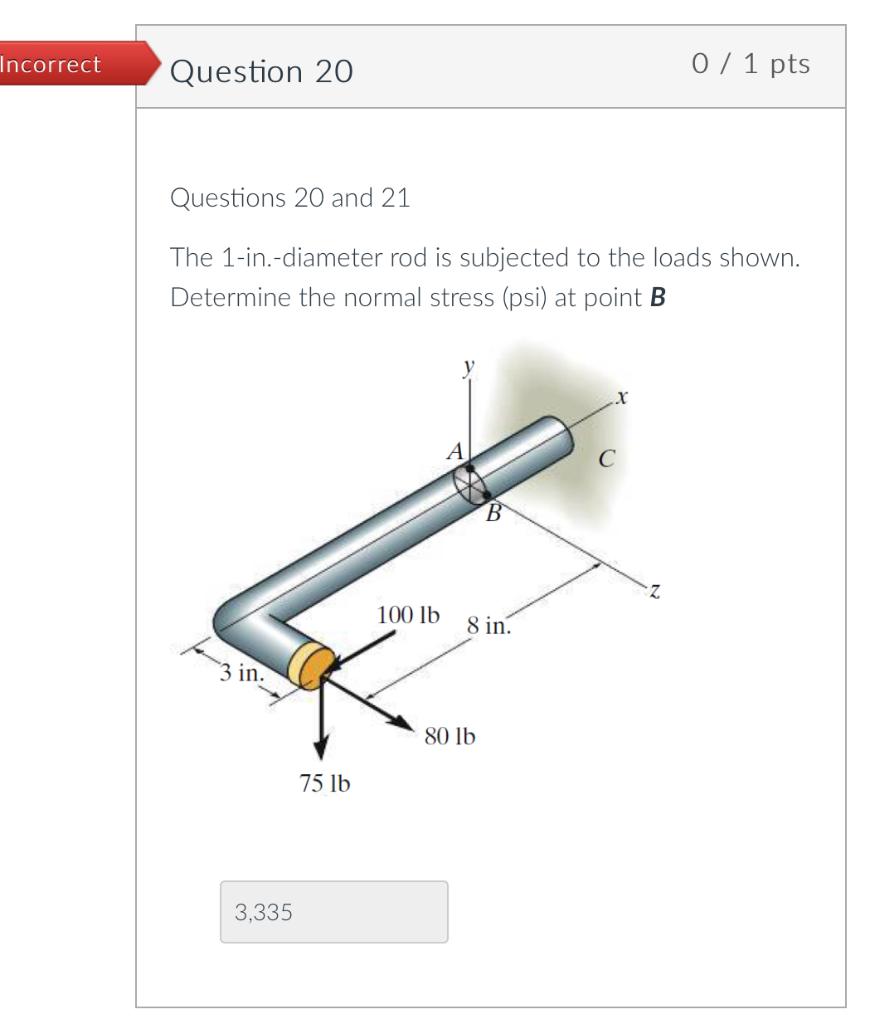

Incorrect Question 20 0 / 1 pts Questions 20 and 21 The 1-in.-diameter rod is subjected to the loads shown. Determine the normal stress (psi) at point B С B z 100 lb 8 in. 3 in. 80 lb 75 lb 3,335

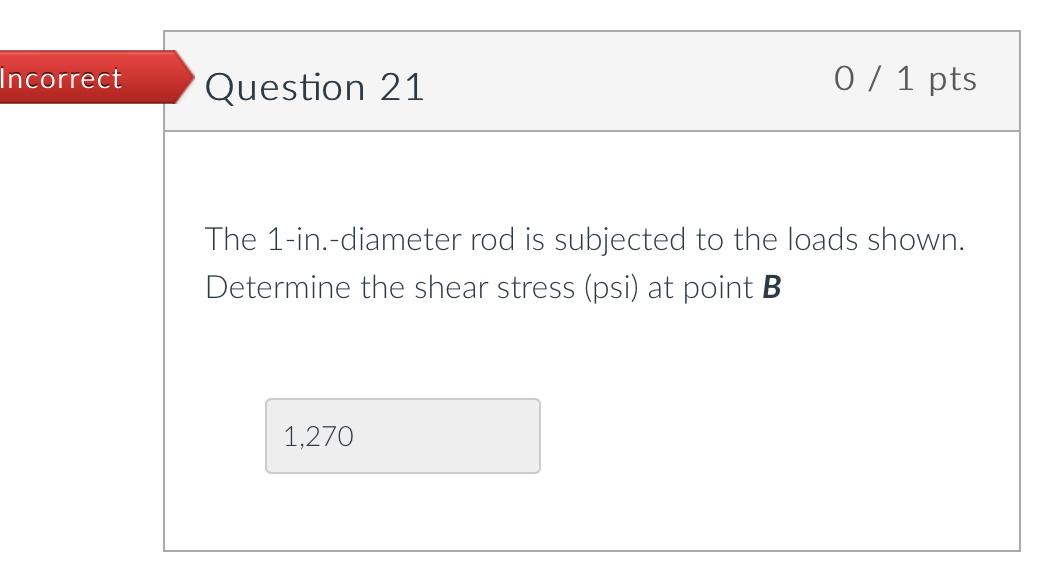

Incorrect Question 21 0 / 1 pts The 1-in.-diameter rod is subjected to the loads shown. Determine the shear stress (psi) at point B 1,270
