1) A homogenous 800kg bar AB is supported at either end by a cable as shown in Figure 1. Calculate the smallest area eac

Post by answerhappygod »

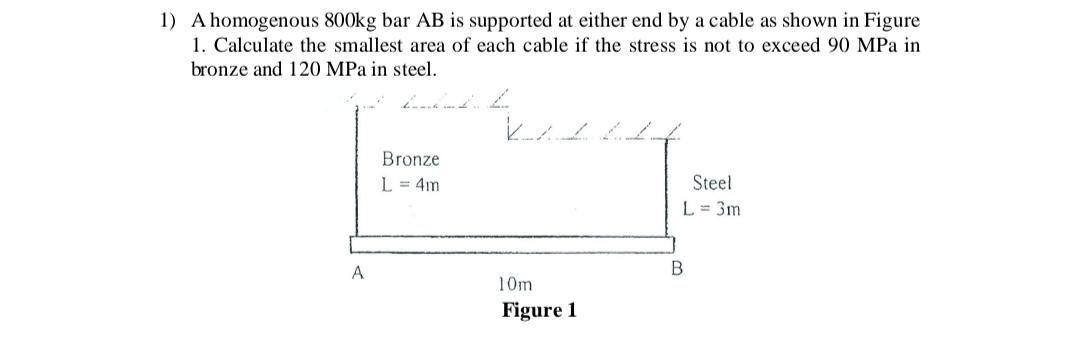

1 A Homogenous 800kg Bar Ab Is Supported At Either End By A Cable As Shown In Figure 1 Calculate The Smallest Area Eac 1
1 A Homogenous 800kg Bar Ab Is Supported At Either End By A Cable As Shown In Figure 1 Calculate The Smallest Area Eac 1 (26.02 KiB) Viewed 35 times
1) A homogenous 800kg bar AB is supported at either end by a cable as shown in Figure 1. Calculate the smallest area each cable if the stress is not to exceed 90 MPa in bronze and 120 MPa in steel. ا ت ا ر ا Bronze L = 4m Steel L = 3m A B 10m Figure 1
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
