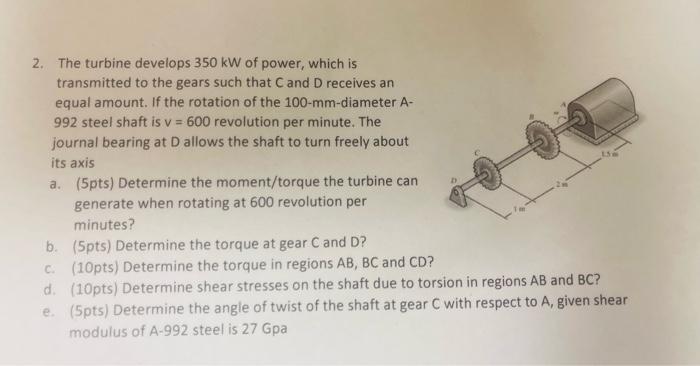

- 2 The Turbine Develops 350 Kw Of Power Which Is Transmitted To The Gears Such That Cand D Receives An Equal Amount If 1 (29.3 KiB) Viewed 32 times
2. The turbine develops 350 kW of power, which is transmitted to the gears such that Cand D receives an equal amount. If
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. The turbine develops 350 kW of power, which is transmitted to the gears such that Cand D receives an equal amount. If
2. The turbine develops 350 kW of power, which is transmitted to the gears such that Cand D receives an equal amount. If the rotation of the 100-mm-diameter A- 992 steel shaft is v = 600 revolution per minute. The journal bearing at allows the shaft to turn freely about its axis a. (5pts) Determine the moment/torque the turbine can generate when rotating at 600 revolution per minutes? b. (5pts) Determine the torque at gear C and D? C (10pts) Determine the torque in regions AB, BC and CD? d. (10pts) Determine shear stresses on the shaft due to torsion in regions AB and BC? e (5pts) Determine the angle of twist of the shaft at gear C with respect to A, given shear modulus of A-992 steel is 27 Gpa
