3. A shaft have diameter of 80 mm, subjected to two forces as showing in the left figure below (A and B are bearing supp

[answerhappygod]

3 A Shaft Have Diameter Of 80 Mm Subjected To Two Forces As Showing In The Left Figure Below A And B Are Bearing Supp 1 (27.94 KiB) Viewed 35 times

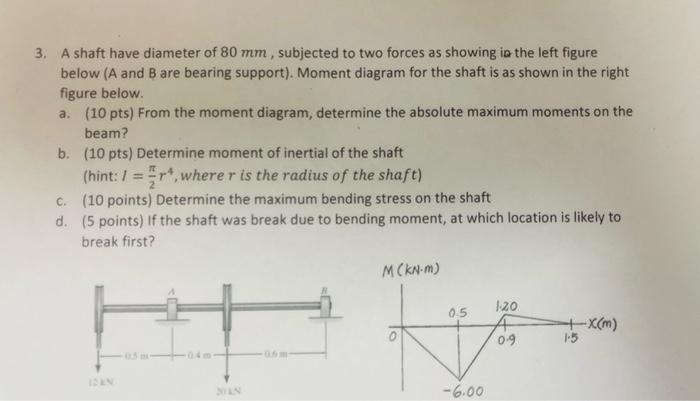

3. A shaft have diameter of 80 mm, subjected to two forces as showing in the left figure below (A and B are bearing support). Moment diagram for the shaft is as shown in the right figure below. a. (10 pts) From the moment diagram, determine the absolute maximum moments on the beam? b. (10 pts) Determine moment of inertial of the shaft (hint: I = r*, where r is the radius of the shaft) C. (10 points) Determine the maximum bending stress on the shaft d. (5 points) If the shaft was break due to bending moment, at which location is likely to break first? M (k- m) 0.5 120 + X(m) 15 09 -6.00
