Question 4 (7.5 marks) The measured extreme fibre strains at mid span of a simply supported beam, loaded with uniformly

[answerhappygod]

Question 4 7 5 Marks The Measured Extreme Fibre Strains At Mid Span Of A Simply Supported Beam Loaded With Uniformly 1 (81.37 KiB) Viewed 24 times

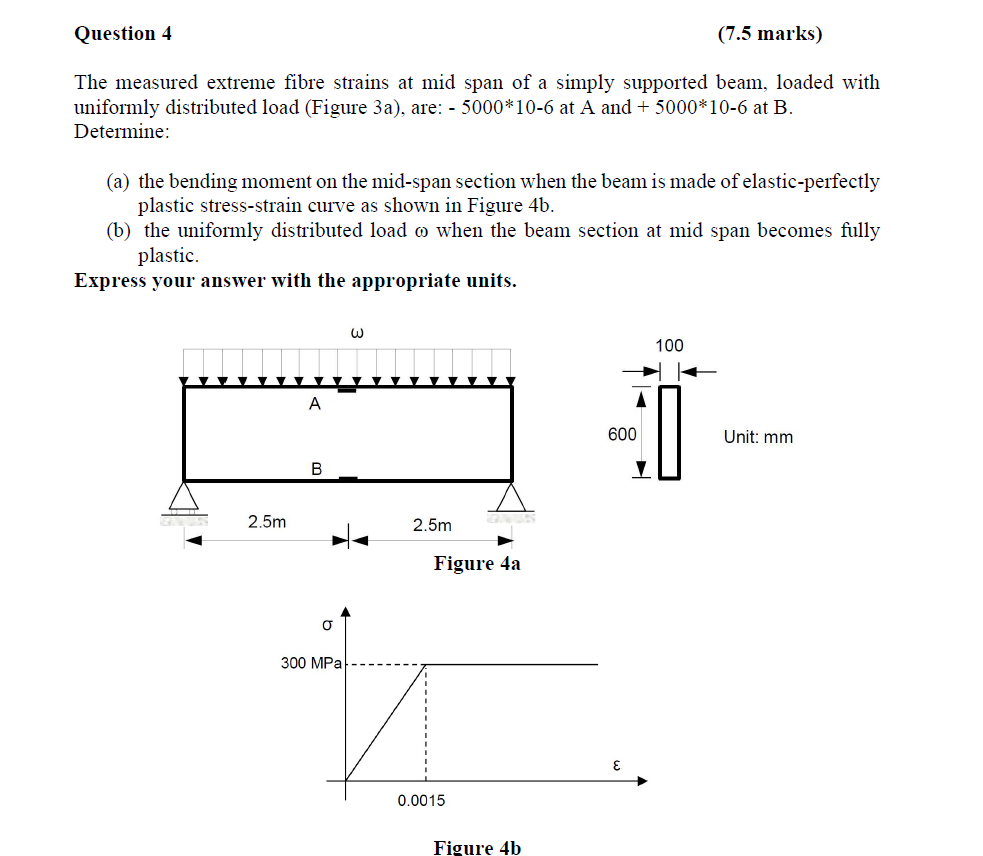

Question 4 (7.5 marks) The measured extreme fibre strains at mid span of a simply supported beam, loaded with uniformly distributed load (Figure 3a), are: - 5000*10-6 at A and + 5000*10-6 at B. Determine: (a) the bending moment on the mid-span section when the beam is made of elastic-perfectly plastic stress-strain curve as shown in Figure 4b. (b) the uniformly distributed load o when the beam section at mid span becomes fully plastic. Express your answer with the appropriate units. w 100 A 600 Unit: mm B V 2.5m 2.5m Figure 4a 300 MPa 0.0015 Figure 4b
