Problem 2 (25 points) For this composite beam subjected to the loadings shown, determine the stat of stress at Point and

Post by answerhappygod »

Problem 2 25 Points For This Composite Beam Subjected To The Loadings Shown Determine The Stat Of Stress At Point And 1
Problem 2 25 Points For This Composite Beam Subjected To The Loadings Shown Determine The Stat Of Stress At Point And 1 (34.66 KiB) Viewed 20 times

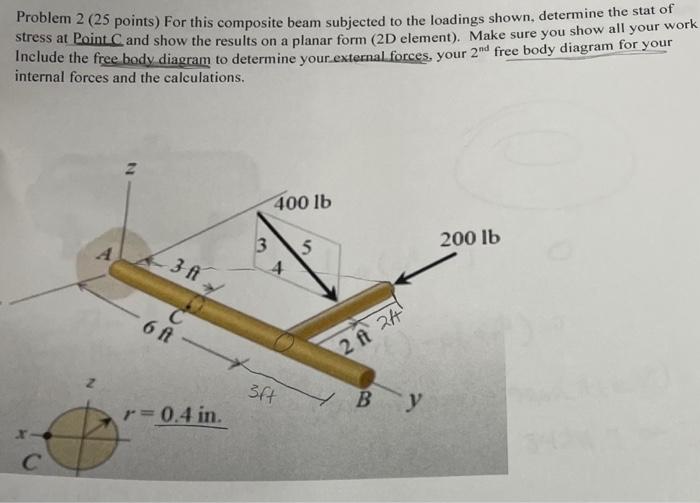

Problem 2 (25 points) For this composite beam subjected to the loadings shown, determine the stat of stress at Point and show the results on a planar form (2D element). Make sure you show all your work Include the free body diagram to determine your external forces, your 2nd free body diagram for your internal forces and the calculations. 400 lb 3 5 200 lb A 3 ft 5 4 6 ft 2 A 24 3ft Y BY r=0.4 in. С
