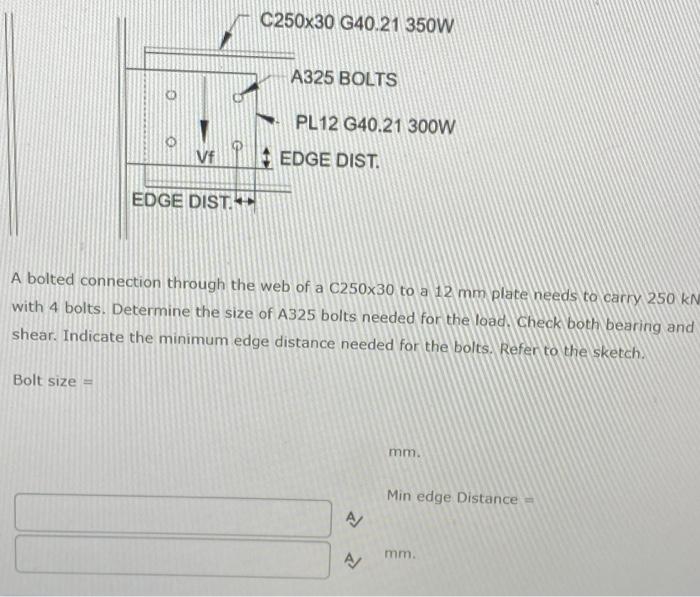

C250x30 G40.21 350W A325 BOLTS PL12 G40.21 300W Vf EDGE DIST. EDGE DIST. A bolted connection through the web of a C250x30 to a 12 mm plate needs to carry 250 KN with 4 bolts. Determine the size of A325 bolts needed for the load. Check both bearing and shear. Indicate the minimum edge distance needed for the bolts. Refer to the sketch. Bolt size = .חחחח Min edge Distance AM mm. A
