Fill-in the weld symbol to indicate to the welder to provide an 8 mm fillet weld, in the field, that is 150 mm long ever

Post by answerhappygod »

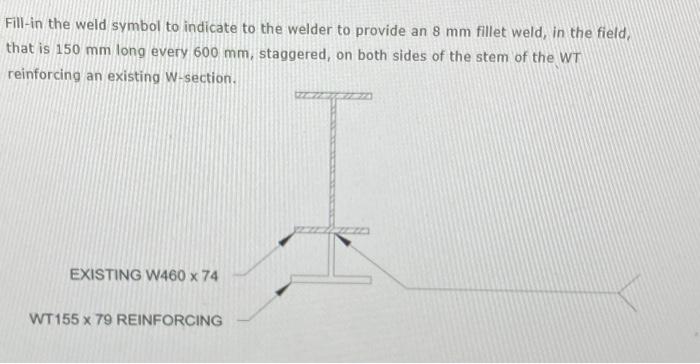

Fill In The Weld Symbol To Indicate To The Welder To Provide An 8 Mm Fillet Weld In The Field That Is 150 Mm Long Ever 1
Fill In The Weld Symbol To Indicate To The Welder To Provide An 8 Mm Fillet Weld In The Field That Is 150 Mm Long Ever 1 (33.67 KiB) Viewed 21 times
Fill-in the weld symbol to indicate to the welder to provide an 8 mm fillet weld, in the field, that is 150 mm long every 600 mm, staggered, on both sides of the stem of the WT reinforcing an existing W-section EXISTING W460 x 74 WT155 x 79 REINFORCING
