Instruction: In each item, draw the shear and moment diagram and determine the maximum shear and maximum moment (10pts e

[answerhappygod]

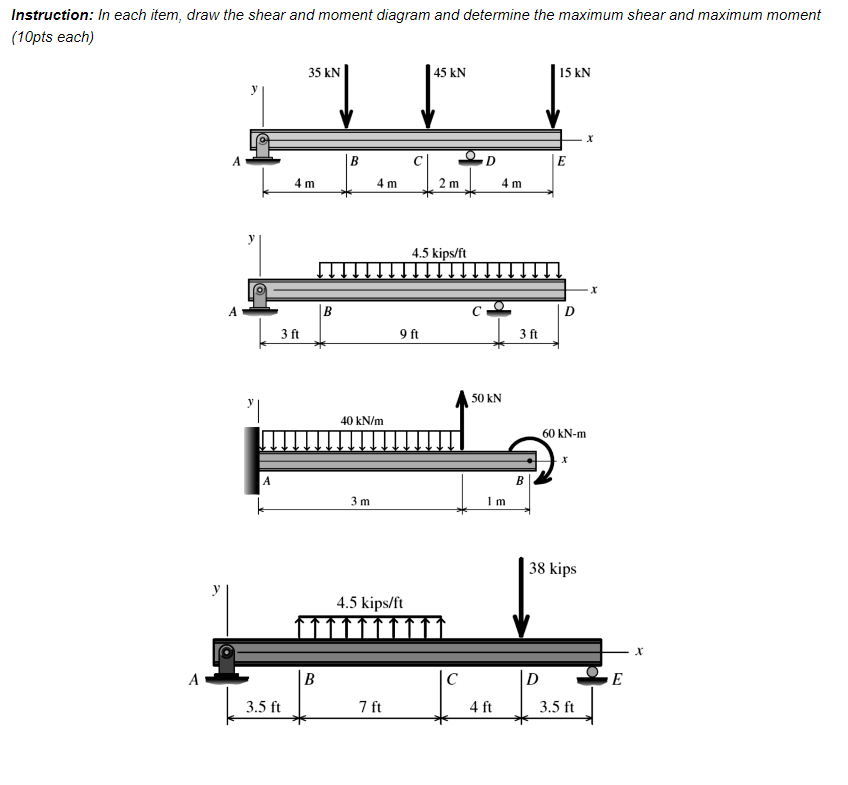

Instruction In Each Item Draw The Shear And Moment Diagram And Determine The Maximum Shear And Maximum Moment 10pts E 1 (50.23 KiB) Viewed 19 times

Instruction: In each item, draw the shear and moment diagram and determine the maximum shear and maximum moment (10pts each) 35 kN 45 KN 15 kN A B D E 12 4 m 4 m 2 m 4 m 4.5 kips/ft X B 3 ft 9 ft 3 ft 50 kN 40 kN/m 60 kN-m А 3 m 1 m | 38 kips 4.5 kips/ft X B c D E 3.5 ft 7 ft 4 ft 3.5 ft
