Question 4 The beam AB of Figure Q4 with constant flexural rigidity El is fixed at end A. Furthermore, it carries a dist

Post by answerhappygod »

Question 4 The Beam Ab Of Figure Q4 With Constant Flexural Rigidity El Is Fixed At End A Furthermore It Carries A Dist 1
Question 4 The Beam Ab Of Figure Q4 With Constant Flexural Rigidity El Is Fixed At End A Furthermore It Carries A Dist 1 (33.2 KiB) Viewed 26 times

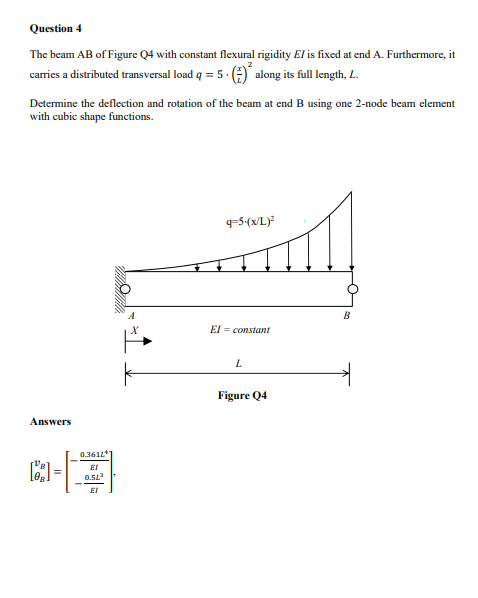

Question 4 The beam AB of Figure Q4 with constant flexural rigidity El is fixed at end A. Furthermore, it carries a distributed transversal load q = 5. () along its full length, L. Determine the deflection and rotation of the beam at end B using one 2-node beam element with cubic shape functions. q=5-(XL) le B EI = constant L Figure 24 Answers 0.36114 6-3 0.53
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
