B1=105mm
B2=125mm
H=100mm

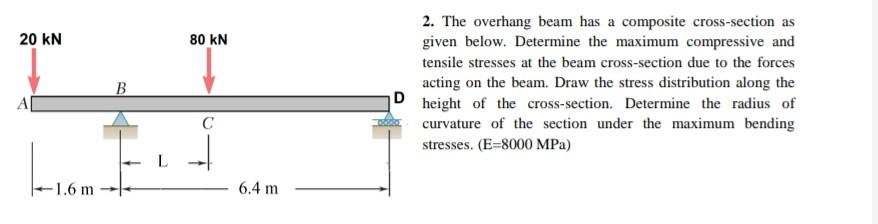

20 KN 80 KN B 2. The overhang beam has a composite cross-section as given below. Determine the maximum compressive and tensile stresses at the beam cross-section due to the forces acting on the beam. Draw the stress distribution along the height of the cross-section. Determine the radius of curvature of the section under the maximum bending stresses. (E=8000 MPa) D с -1.6 m 6.4 m

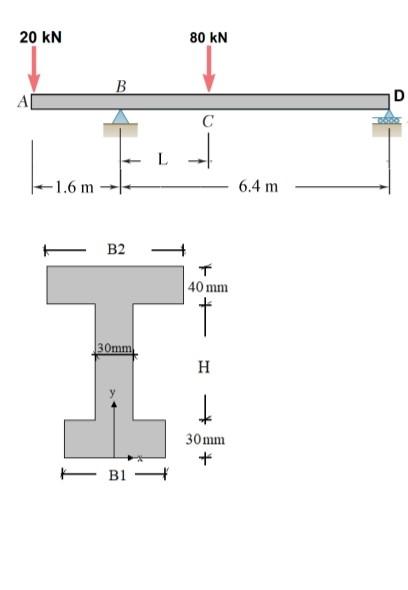

20 KN 80 KN B D D C -1.6 m 6.4 m B2 T 40 mm T 7 30mm H 30 mm + B1 -
