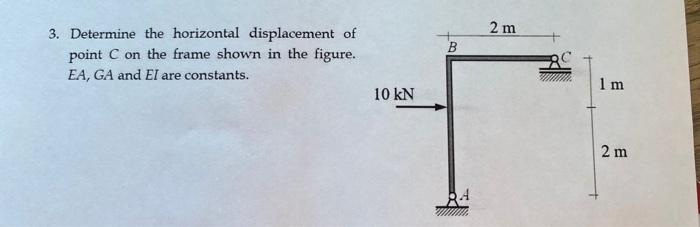

2 m B 3. Determine the horizontal displacement of point C on the frame shown in the figure. EA, GA and EI are constants. 1 m 10 kN 2 m 84

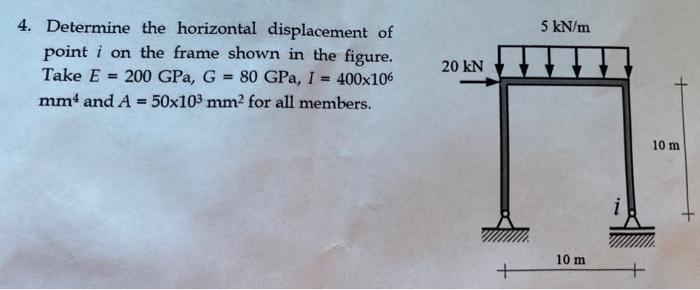

5 kN/m 4. Determine the horizontal displacement of point i on the frame shown in the figure. Take E = 200 GPa, G = 80 GPa, I = 400x106 mm' and A = 50x103 mm2 for all members. 20 kN = 10 m i 10 m +
