Use Castigliano's first theorem to determine the slope and deflection at point B of the beam shown.

Post by answerhappygod »

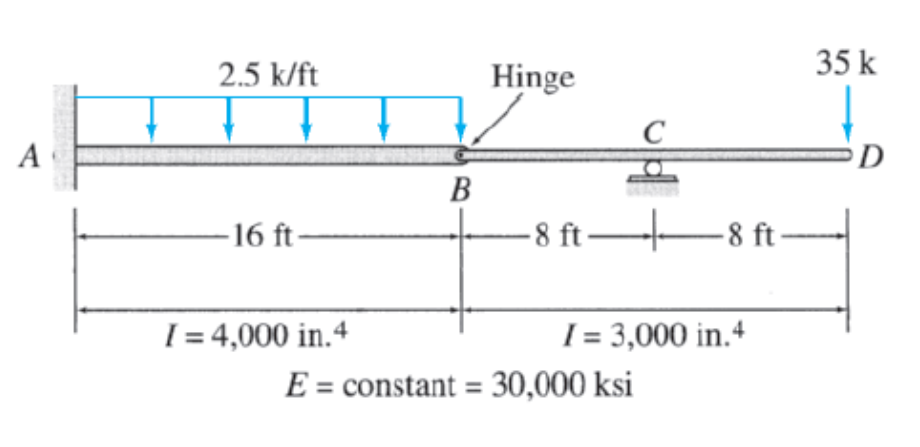

Use Castigliano's first theorem to determine the slope and deflection at point B of the beam shown.
Use Castigliano S First Theorem To Determine The Slope And Deflection At Point B Of The Beam Shown 1
Use Castigliano S First Theorem To Determine The Slope And Deflection At Point B Of The Beam Shown 1 (104.68 KiB) Viewed 41 times
2.5 k/ft 35 k Hinge A -D B - 16 ft 8 ft -8 ft I = 4,000 in.4 I = 3,000 in.4 E = constant = 30,000 ksi
