Refer to the Figure below for the design of a gravity retaining wall for earthquake condition Given: k.=0 and kn=0.3 Wha

[answerhappygod]

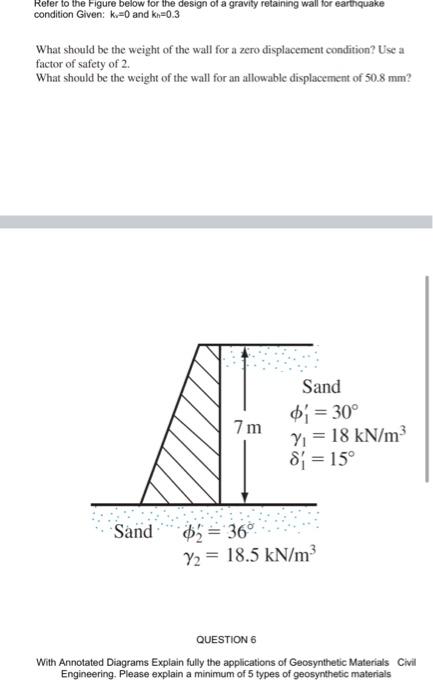

Refer To The Figure Below For The Design Of A Gravity Retaining Wall For Earthquake Condition Given K 0 And Kn 0 3 Wha 1 (26.27 KiB) Viewed 25 times

Refer to the Figure below for the design of a gravity retaining wall for earthquake condition Given: k.=0 and kn=0.3 What should be the weight of the wall for a zero displacement condition? Use a factor of safety of 2. What should be the weight of the wall for an allowable displacement of 50.8 mm? 7 m Sand $ = 30° n = 18 kN/m2 8 = 15° Sand = 36 V2 = 18.5 kN/m3 - QUESTION 6 With Annotated Diagrams Explain fully the applications of Geosynthetic Materials Civil Engineering. Please explain a minimum of 5 types of geosynthetic materials 5
