a) For a direct shear test on a dry sand, the following are
given: - Specimen size: 75 mm × 75 mm × 30 mm (height) - Normal
stress at failure: 200 kPa - Shear stress at failure: 175 kPa For a
normal stress of 150 kPa, what shear force is required to cause
failure in this specimen? 10 b) For a normally consolidated clay,
given ϕ = 20o and ϕ′ = 28o . If a CU triaxial test is conducted
with the same soil with the all-around confining pressure of 140
kPa. What would be the pore water pressure at failure?

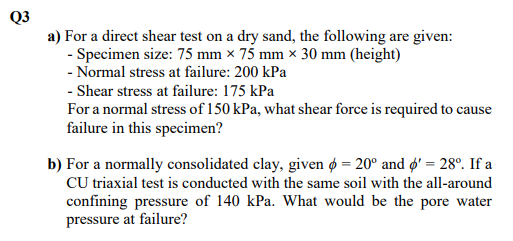

A For A Direct Shear Test On A Dry Sand The Following Are Given Specimen Size 75 Mm 75 Mm 30 Mm Height Nor 1 (50.02 KiB) Viewed 32 times
Q3 a) For a direct shear test on a dry sand, the following are given: - Specimen size: 75 mm x 75 mm x 30 mm (height) - Normal stress at failure: 200 kPa - Shear stress at failure: 175 kPa For a normal stress of 150 kPa, what shear force is required to cause failure in this specimen? b) For a normally consolidated clay, given = 20° and ' = 28°. If a CU triaxial test is conducted with the same soil with the all-around confining pressure of 140 kPa. What would be the pore water pressure at failure?
