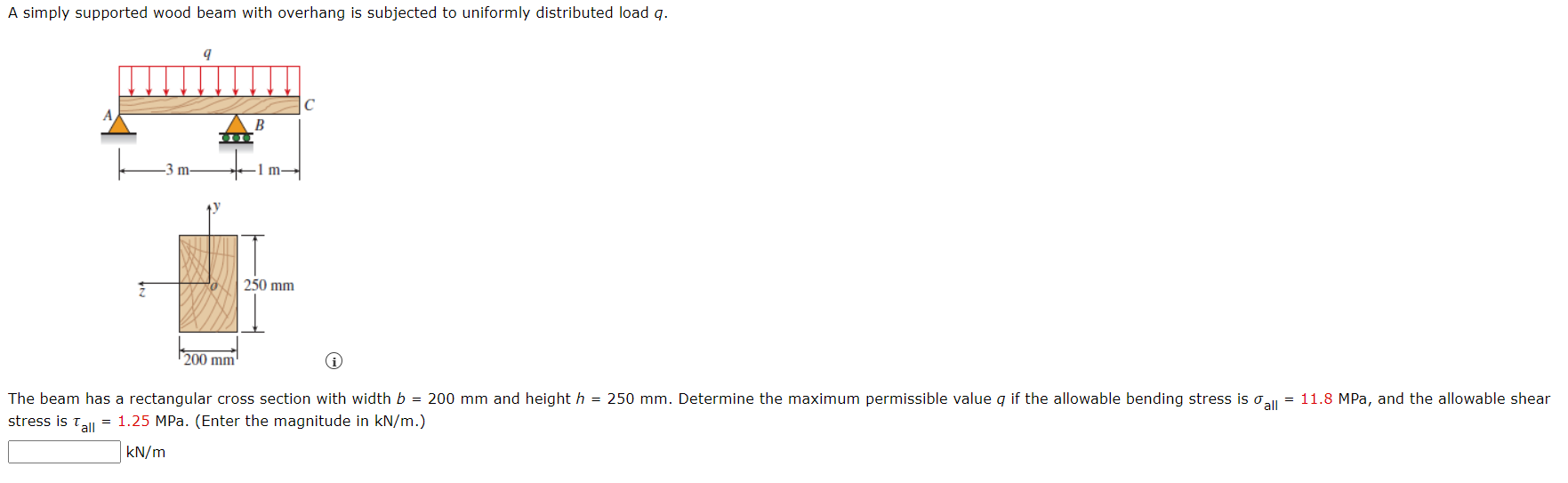

A simply supported wood beam with overhang is subjected to uniformly distributed load q. 9 с B 11 3 m 1 m- 250 mm 200 mm

[answerhappygod]

1 (54.23 KiB) Viewed 35 times

A simply supported wood beam with overhang is subjected to uniformly distributed load q. 9 с B 11 3 m 1 m- 250 mm 200 mm 0 The beam has a rectangular cross section with width b = 200 mm and height h = 250 mm. Determine the maximum permissible value q if the allowable bending stress is o all = 11.8 MPa, and the allowable shear = 1.25 MPa. (Enter the magnitude in kN/m.) kN/m stress is Tall
