A wood beam is strengthened using two steel plates as shown in the figure below. 6 mm A 'O 150 mm 6 mm B 100 mm The beam

[answerhappygod]

A Wood Beam Is Strengthened Using Two Steel Plates As Shown In The Figure Below 6 Mm A O 150 Mm 6 Mm B 100 Mm The Beam 1 (79.37 KiB) Viewed 36 times

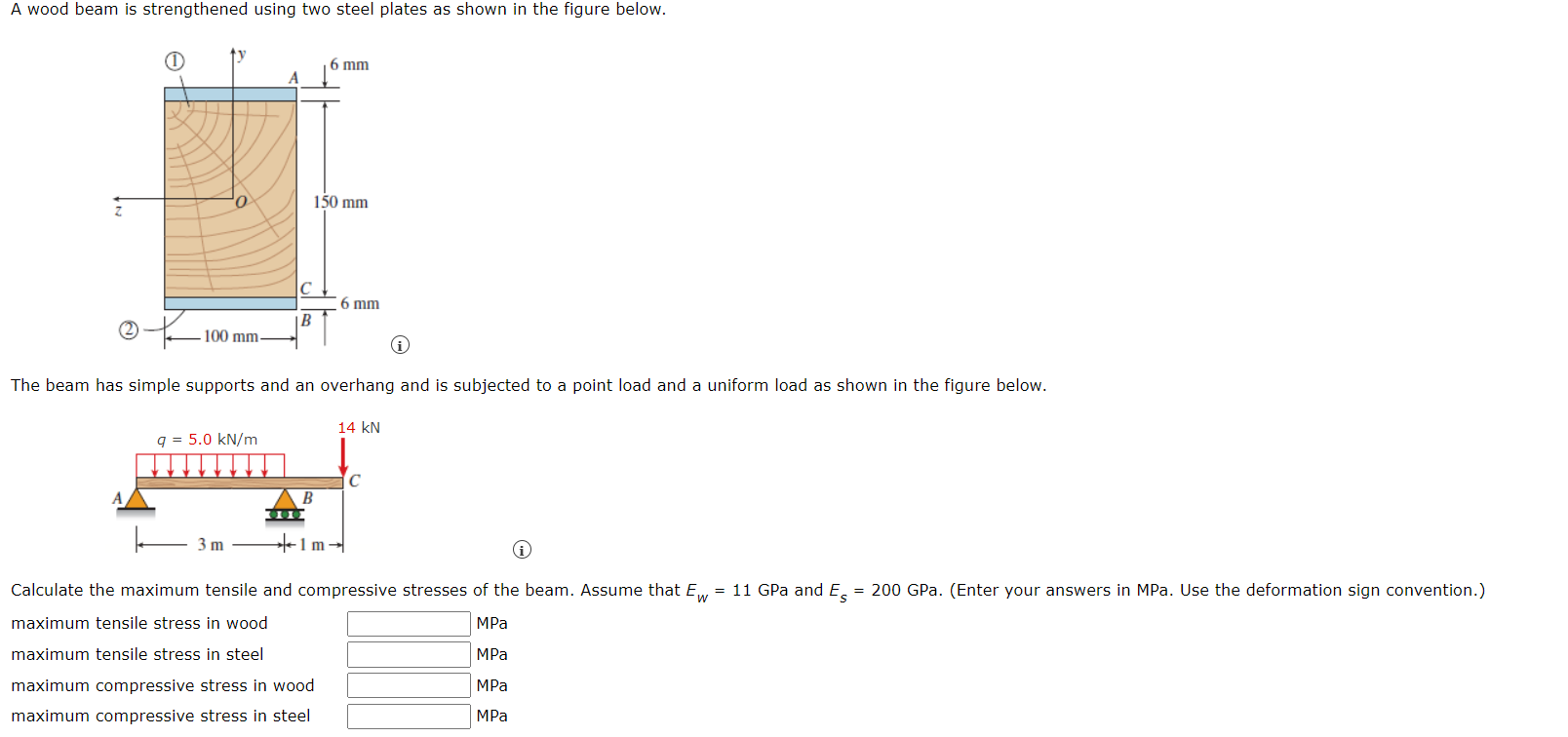

A wood beam is strengthened using two steel plates as shown in the figure below. 6 mm A 'O 150 mm 6 mm B 100 mm The beam has simple supports and an overhang and is subjected to a point load and a uniform load as shown in the figure below. 14 kN 9 = 5.0 kN/m с B 1 3 m 1 m Calculate the maximum tensile and compressive stresses of the beam. Assume that Ew = 11 GPa and Es = 200 GPa. (Enter your answers in MPa. Use the deformation sign convention.) maximum tensile stress in wood MPa maximum tensile stress in steel MPa maximum compressive stress in wood MPa maximum compressive stress in steel MPa
