Consider a wood beam (see figure) carrying a uniform load of 21.5 kN/m (which includes the weight of the beam). The leng

[answerhappygod]

Consider A Wood Beam See Figure Carrying A Uniform Load Of 21 5 Kn M Which Includes The Weight Of The Beam The Leng 1 (61.72 KiB) Viewed 39 times

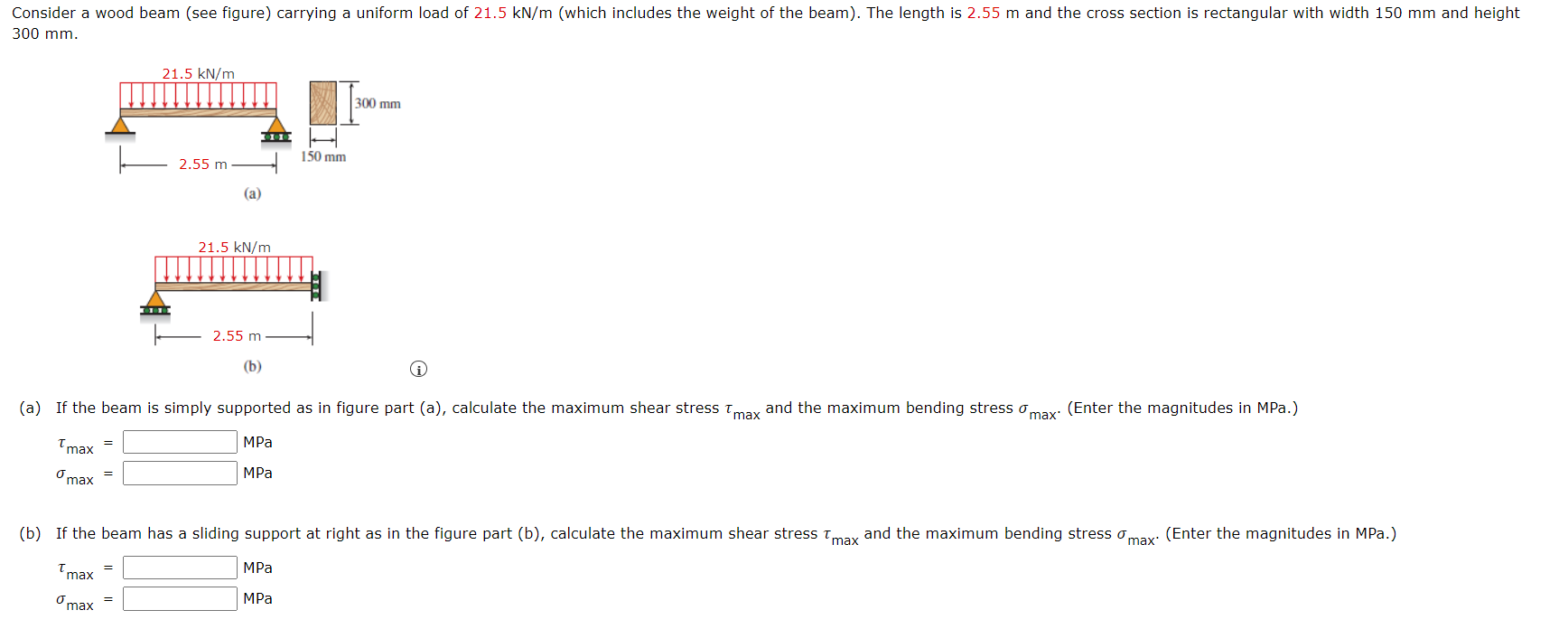

Consider a wood beam (see figure) carrying a uniform load of 21.5 kN/m (which includes the weight of the beam). The length is 2.55 m and the cross section is rectangular with width 150 mm and height 300 mm. 21.5 kN/m 300 mm TIT 150 mm 2.55 m (a) 21.5 kN/m 2.55 m (b) (a) If the beam is simply supported as in figure part (a), calculate the maximum shear stress Tmax and the maximum bending stress o max. (Enter the magnitudes in MPa.) = T max MPa = max MPa (b) If the beam has a sliding support at right as in the figure part (b), calculate the maximum shear stress Tmax and the maximum bending stress o max. (Enter the magnitudes in MPa.) Tmax = MPa max MPa
