(MPa) 460 Time left 0:38:45 260 0.07 0.000 0.00122 (mm/mm) The length of the rod shown in the figure is L = 350 mm and i

Post by answerhappygod »

Mpa 460 Time Left 0 38 45 260 0 07 0 000 0 00122 Mm Mm The Length Of The Rod Shown In The Figure Is L 350 Mm And I 1
Mpa 460 Time Left 0 38 45 260 0 07 0 000 0 00122 Mm Mm The Length Of The Rod Shown In The Figure Is L 350 Mm And I 1 (46.57 KiB) Viewed 29 times

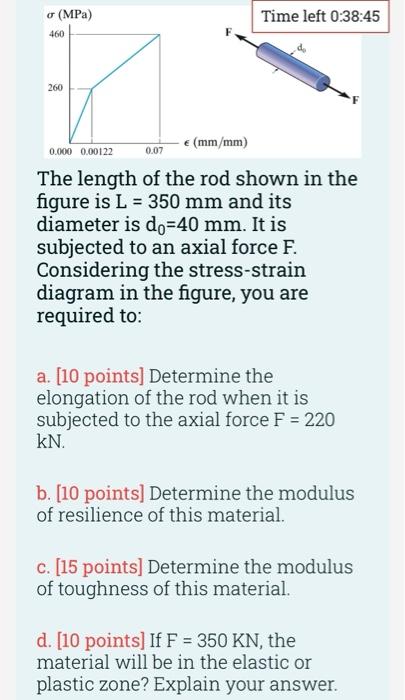

(MPa) 460 Time left 0:38:45 260 0.07 0.000 0.00122 (mm/mm) The length of the rod shown in the figure is L = 350 mm and its diameter is do=40 mm. It is subjected to an axial force F. Considering the stress-strain diagram in the figure, you are required to: a. [10 points) Determine the elongation of the rod when it is subjected to the axial force F = 220 KN b. [10 points] Determine the modulus of resilience of this material. c. [15 points] Determine the modulus of toughness of this material. d. (10 points) If F = 350 KN, the material will be in the elastic or plastic zone? Explain your answer.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
