Solve the following question according to AS3600-2018.

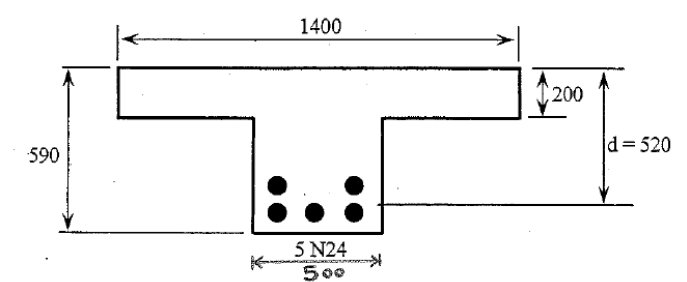

For the reinforced concrete T beam shown in the Figure below, at
the ultimate limit state, M*=530 kNm. For this beam f'c = 32 MPa,
Ec = 30,100 MPa, and fsy = 500 MPa.
a) Calculate the value of Mu for this beam and determine of
ΦMu
b) Modify the cross-section so that ΦMu increases by
approximately 20%. Verify your new design for both strength and
ductility.
Solve The Following Question According To As3600 2018 For The Reinforced Concrete T Beam Shown In The Figure Below At 1 (22.42 KiB) Viewed 31 times
1400 200 id=520 590 不 SN24 500
