Find all member forces in the composite truss as shown in the figure. (Specify whether the member is tension or compression.)

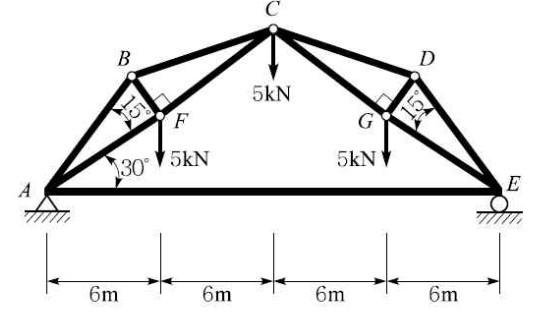

- Find All Member Forces In The Composite Truss As Shown In The Figure Specify Whether The Member Is Tension Or Compress 1 (19.87 KiB) Viewed 29 times
*answer :

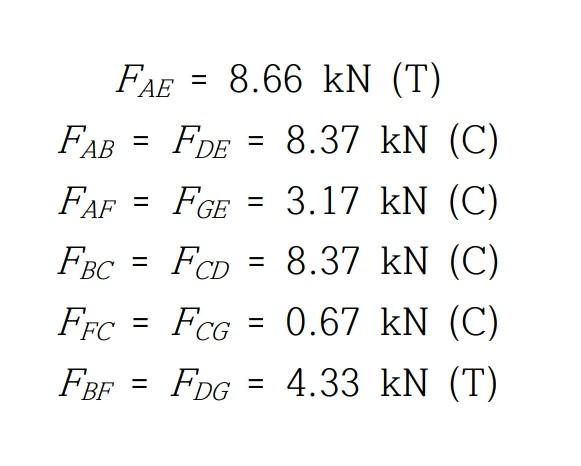

- Find All Member Forces In The Composite Truss As Shown In The Figure Specify Whether The Member Is Tension Or Compress 2 (27.47 KiB) Viewed 29 times
B D 5kN 15 F 5kN 5KNV 530 А E 6m 6m 6m 6m
= = FGE = FAE = 8.66 kN (T) ( FAB = FDE = 8.37 kN (C) FAF 3.17 kN (C) FBC FCD 8.37 kN (C) Ffc = FCG = 0.67 kN (C) FBF = FDG = 4.33 kN (T) = = = =
