Water is pumped from Reservoir A to Reservoir B and Reservoir C. For all pipes the diameter is D-0.4 m and friction fact

[answerhappygod]

Water Is Pumped From Reservoir A To Reservoir B And Reservoir C For All Pipes The Diameter Is D 0 4 M And Friction Fact 1 (35.41 KiB) Viewed 24 times

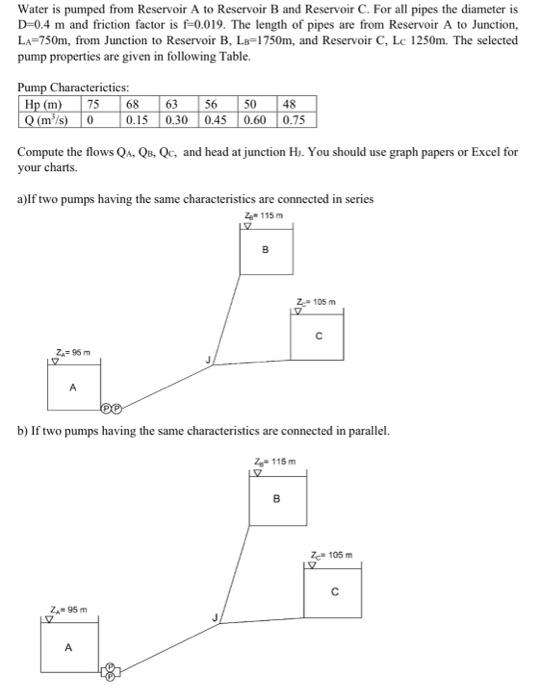

Water is pumped from Reservoir A to Reservoir B and Reservoir C. For all pipes the diameter is D-0.4 m and friction factor is f-0.019. The length of pipes are from Reservoir A to Junction, LA=750m, from Junction to Reservoir B, L-1750m, and Reservoir C, Lc 1250m. The selected pump properties are given in following Table, Pump Characterictics: Hp (m) 75 68 63 56 50 48 Q(m/s) 0 0.15 0.30 0.45 0.60 0.75 Compute the flows QA, Q5, Qc, and head at junction Hj. You should use graph papers or Excel for your charts. a)If two pumps having the same characteristics are connected in series 2115 19 B Z-105m C Z = 95 m А leo b) If two pumps having the same characteristics are connected in parallel 2- 115m 00 B Po ZA 105 m V с ZA 95 m 0 A
