Find the member forces of JH, IJ, and BJ members in the composite truss as shown in the figure. *[answer : F JH=4.24kN(T

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Find the member forces of JH, IJ, and BJ members in the composite truss as shown in the figure. *[answer : F JH=4.24kN(T

Post by answerhappygod »

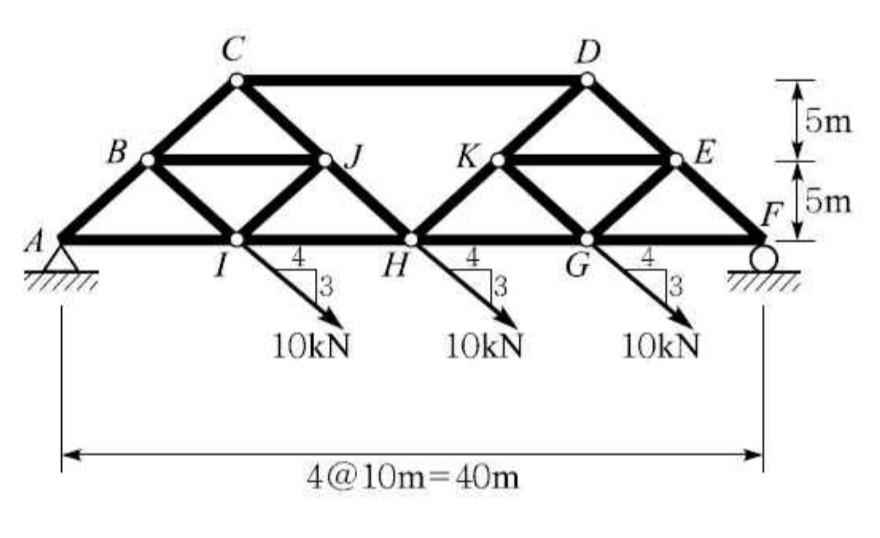

Find the member forces of JH, IJ, and BJ members in the composite truss as shown in the figure.
Find The Member Forces Of Jh Ij And Bj Members In The Composite Truss As Shown In The Figure Answer F Jh 4 24kn T 1
Find The Member Forces Of Jh Ij And Bj Members In The Composite Truss As Shown In The Figure Answer F Jh 4 24kn T 1 (36.08 KiB) Viewed 102 times
*[answer : F JH=4.24kN(T), F IJ=4.24kN(T), F BJ=6.0kN(C)]
C D 5m B K E 5m A H G 13 13 10kN 10kN 10kN 4@10m=40m
