A simply supported W21 x 48 section is used as a beam, 25-feet long, with lateral bracing at the ends and at the midpoin

Post by answerhappygod »

A Simply Supported W21 X 48 Section Is Used As A Beam 25 Feet Long With Lateral Bracing At The Ends And At The Midpoin 1
A Simply Supported W21 X 48 Section Is Used As A Beam 25 Feet Long With Lateral Bracing At The Ends And At The Midpoin 1 (28.85 KiB) Viewed 62 times
loads are kip/ft please show all steps

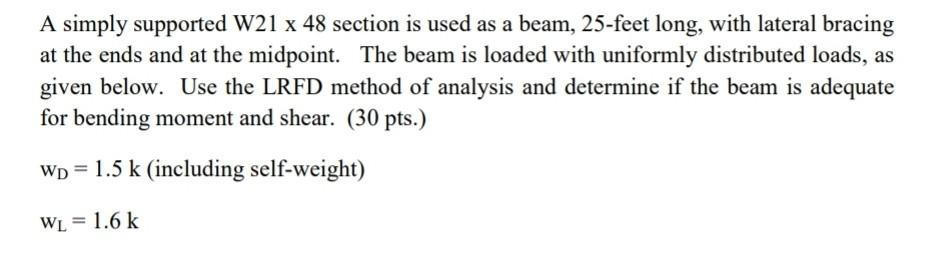

A simply supported W21 x 48 section is used as a beam, 25-feet long, with lateral bracing at the ends and at the midpoint. The beam is loaded with uniformly distributed loads, as given below. Use the LRFD method of analysis and determine if the beam is adequate for bending moment and shear. (30 pts.) WD = 1.5 k (including self-weight) WL = 1.6 k
