PROBLEM 1 Rod ADE is pin-supported at C and also supported by cable ABE, as shown in Figure 1. Neglect the friction at p

Post by answerhappygod »

Problem 1 Rod Ade Is Pin Supported At C And Also Supported By Cable Abe As Shown In Figure 1 Neglect The Friction At P 1
Problem 1 Rod Ade Is Pin Supported At C And Also Supported By Cable Abe As Shown In Figure 1 Neglect The Friction At P 1 (30.94 KiB) Viewed 23 times

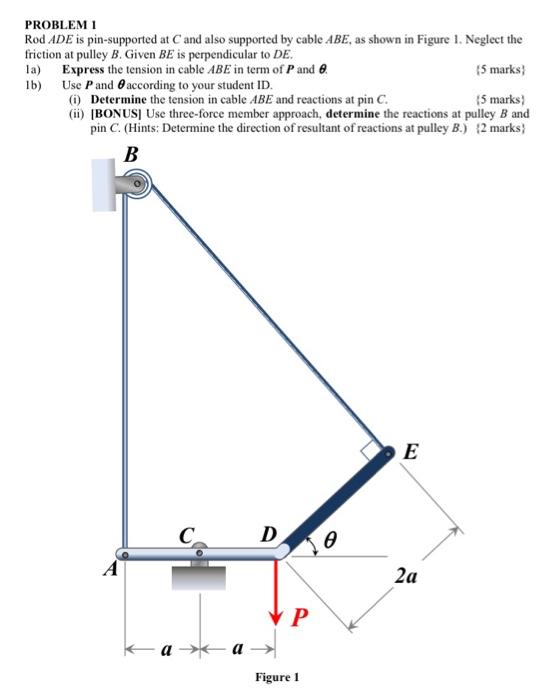

PROBLEM 1 Rod ADE is pin-supported at C and also supported by cable ABE, as shown in Figure 1. Neglect the friction at pulley B. Given BE is perpendicular to DE. la) Express the tension in cable ABE in term of Pande. 15 marks) 1b) Use Pand according to your student ID. 0) Determine the tension in cable ABE and reactions at pin C. {5 marks (ii) (BONUS) Use three-force member approach, determine the reactions at pulley B and pin C. (Hints: Determine the direction of resultant of reactions at pulley B.) (2 marks B E C D D 2a Р a Figure 1
