READ THE WHOLE QUESTION!
THERE IS ANOTHER SIMILAR QUESTION, BUT IS NOT
CORRECT.
DO NOT COPY ANSWERS! I NEED NEW ANSWERS!
This is just one question, but divided into 6 small
parts.
Please, answer the main question and give the 6 small parts like
"1: answer; 2: answer...".
Read The Whole Question There Is Another Similar Question But Is Not Correct Do Not Copy Answers I Need New Answers 1 (180.76 KiB) Viewed 18 times

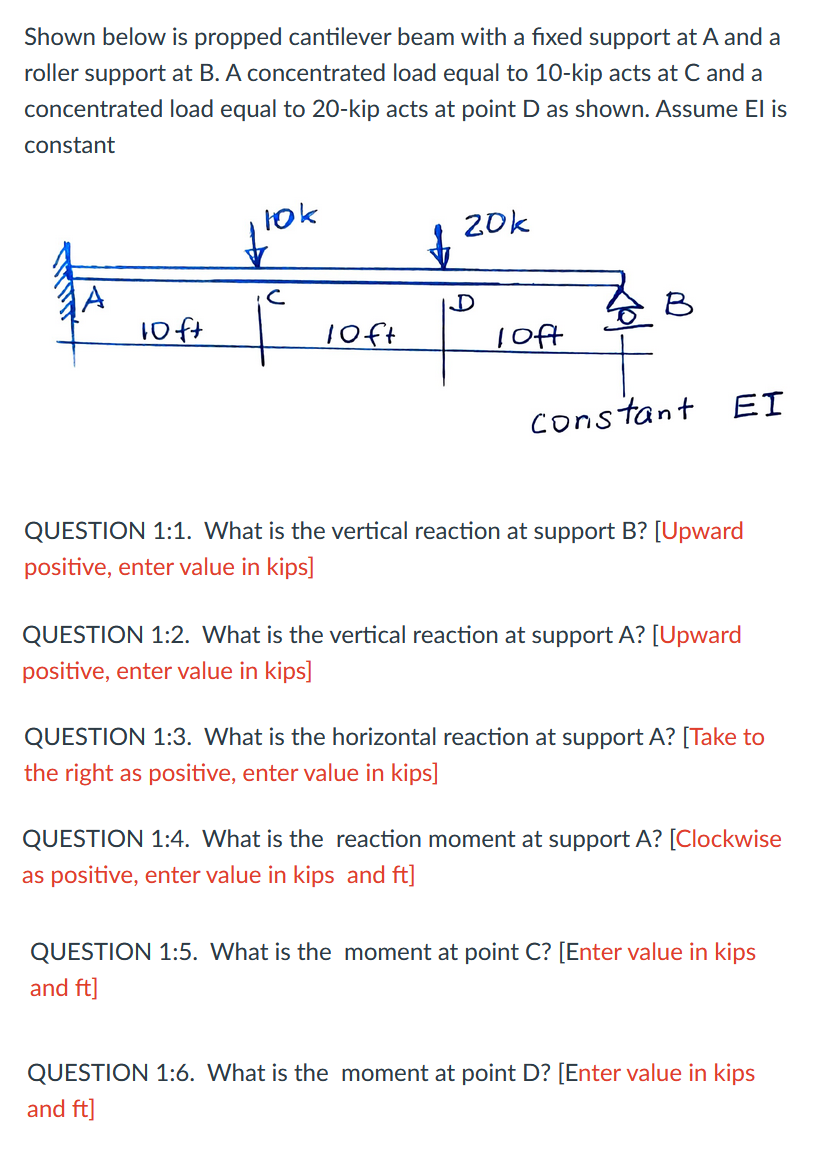

Shown below is propped cantilever beam with a fixed support at A and a roller support at B. A concentrated load equal to 10-kip acts at C and a concentrated load equal to 20-kip acts at point D as shown. Assume El is constant rok 20k А D B 10 ft loft loft constant EI QUESTION 1:1. What is the vertical reaction at support B? [Upward positive, enter value in kips] QUESTION 1:2. What is the vertical reaction at support A? (Upward positive, enter value in kips] QUESTION 1:3. What is the horizontal reaction at support A? [Take to the right as positive, enter value in kips] QUESTION 1:4. What is the reaction moment at support A? [Clockwise as positive, enter value in kips and ft] QUESTION 1:5. What is the moment at point C? [Enter value in kips and ft] QUESTION 1:6. What is the moment at point D? [Enter value in kips and ft]
