Given the following data for the welded bracket shown: a 130mm, b=220mm and c= 220mm. Allowable shear stress of weld met

Post by answerhappygod »

Given The Following Data For The Welded Bracket Shown A 130mm B 220mm And C 220mm Allowable Shear Stress Of Weld Met 1
Given The Following Data For The Welded Bracket Shown A 130mm B 220mm And C 220mm Allowable Shear Stress Of Weld Met 1 (340.9 KiB) Viewed 22 times

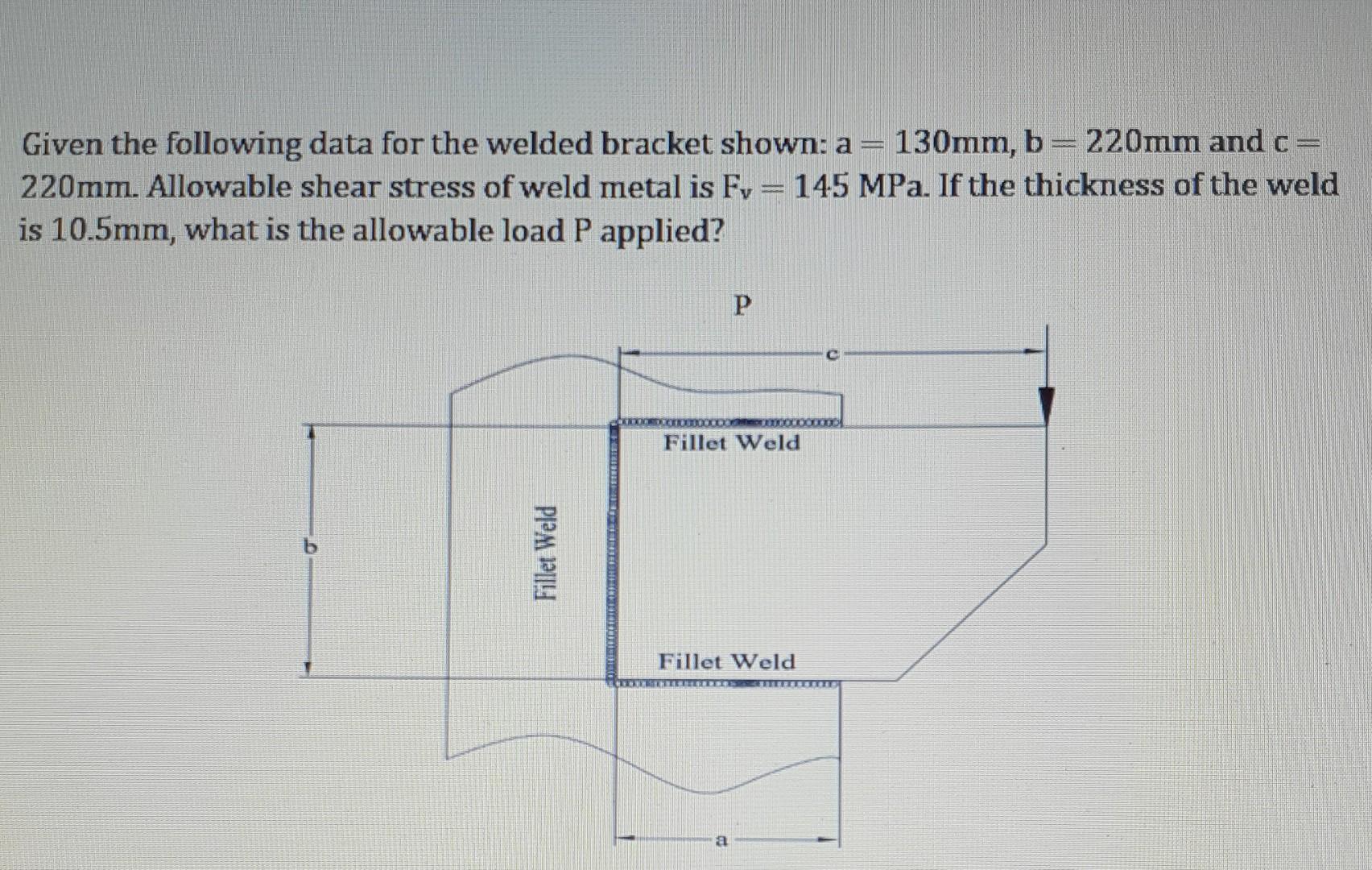

Given the following data for the welded bracket shown: a 130mm, b=220mm and c= 220mm. Allowable shear stress of weld metal is Fy=145 MPa. If the thickness of the weld is 10.5mm, what is the allowable load P applied? P Fillet Weld Fillet Weld Fillet Weld TODDE a
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
