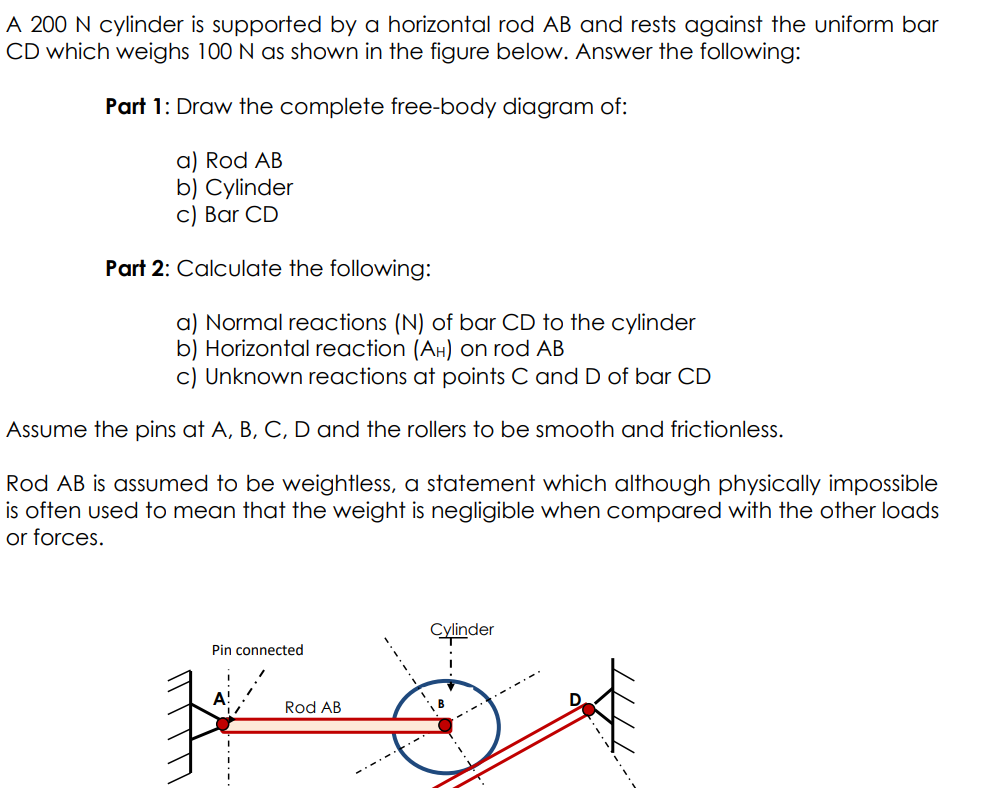

A 200 N cylinder is supported by a horizontal rod AB and rests against the uniform bar CD which weighs 100 N as shown in the figure below. Answer the following: Part 1: Draw the complete free-body diagram of: a) Rod AB b) Cylinder c) Bar CD Part 2: Calculate the following: a) Normal reactions (N) of bar CD to the cylinder b) Horizontal reaction (AH) on rod AB c) Unknown reactions at points C and D of bar CD Assume the pins at A, B, C, D and the rollers to be smooth and frictionless. Rod AB is assumed to be weightless, a statement which although physically impossible is often used to mean that the weight is negligible when compared with the other loads or forces. Cylinder Pin connected A! D Rod AB ܠܠܠ ܠ ܠ TTT
