Determine the internal normal force, shear force, and moment at points D and E in the compound beam. Point E is located

Post by answerhappygod »

Determine The Internal Normal Force Shear Force And Moment At Points D And E In The Compound Beam Point E Is Located 1
Determine The Internal Normal Force Shear Force And Moment At Points D And E In The Compound Beam Point E Is Located 1 (112.49 KiB) Viewed 120 times

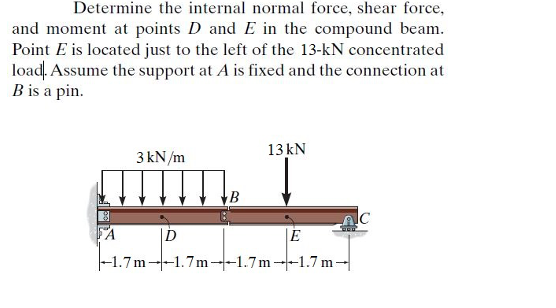

Determine the internal normal force, shear force, and moment at points D and E in the compound beam. Point E is located just to the left of the 13-kN concentrated load. Assume the support at A is fixed and the connection at B is a pin. 13 kN 3 kN/m B IC F1.zm tam D E -1.7m-1.7m|--1.7m-1.7 m-
