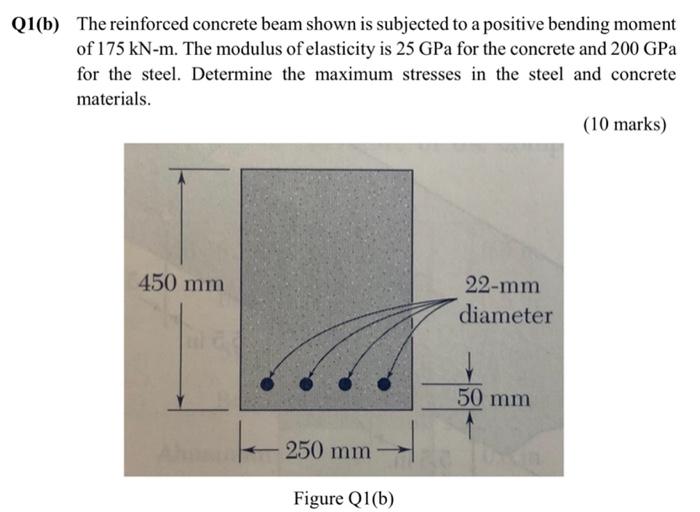

Q1(b) The reinforced concrete beam shown is subjected to a positive bending moment of 175 kN-m. The modulus of elasticity is 25 GPa for the concrete and 200 GPa for the steel. Determine the maximum stresses in the steel and concrete materials. (10 marks) 450 mm 22-mm diameter 50 mm 250 mm Figure Q1(b)
