m. Q4(a) A steel column that is fixed at the base and free at the top is constructed of a wide-flange section (See Figur

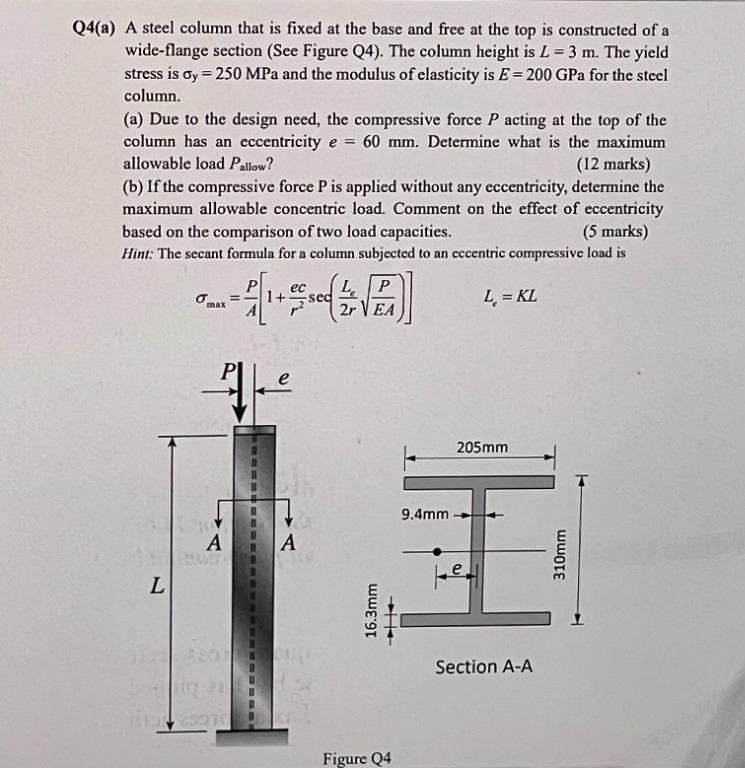

m. Q4(a) A steel column that is fixed at the base and free at the top is constructed of a wide-flange section (See Figure Q4). The column height is L = 3 m. The yield stress is Oy = 250 MPa and the modulus of elasticity is E = 200 GPa for the steel column. (a) Due to the design need, the compressive force P acting at the top of the column has an eccentricity e = 60 mm. Determine what is the maximum allowable load Pallow? (12 marks) (b) If the compressive force P is applied without any eccentricity, determine the maximum allowable concentric load. Comment on the effect of eccentricity based on the comparison of two load capacities. (5 marks) Hint: The secant formula for a column subjected to an eccentric compressive load is P ec 1+ L P 2r VEA “一, max L, = KL 205mm 9.4mm V А А 310mm L 16.3mm Section A-A 337 Figure Q4
