Question 4 [25 marks] A pipe network is shown in Fig. Q4. Using the Hardy-Cross method determine the flow in each pipe.

Post by answerhappygod »

Question 4 25 Marks A Pipe Network Is Shown In Fig Q4 Using The Hardy Cross Method Determine The Flow In Each Pipe 1
Question 4 25 Marks A Pipe Network Is Shown In Fig Q4 Using The Hardy Cross Method Determine The Flow In Each Pipe 1 (45.81 KiB) Viewed 20 times
find the flow in each pipe

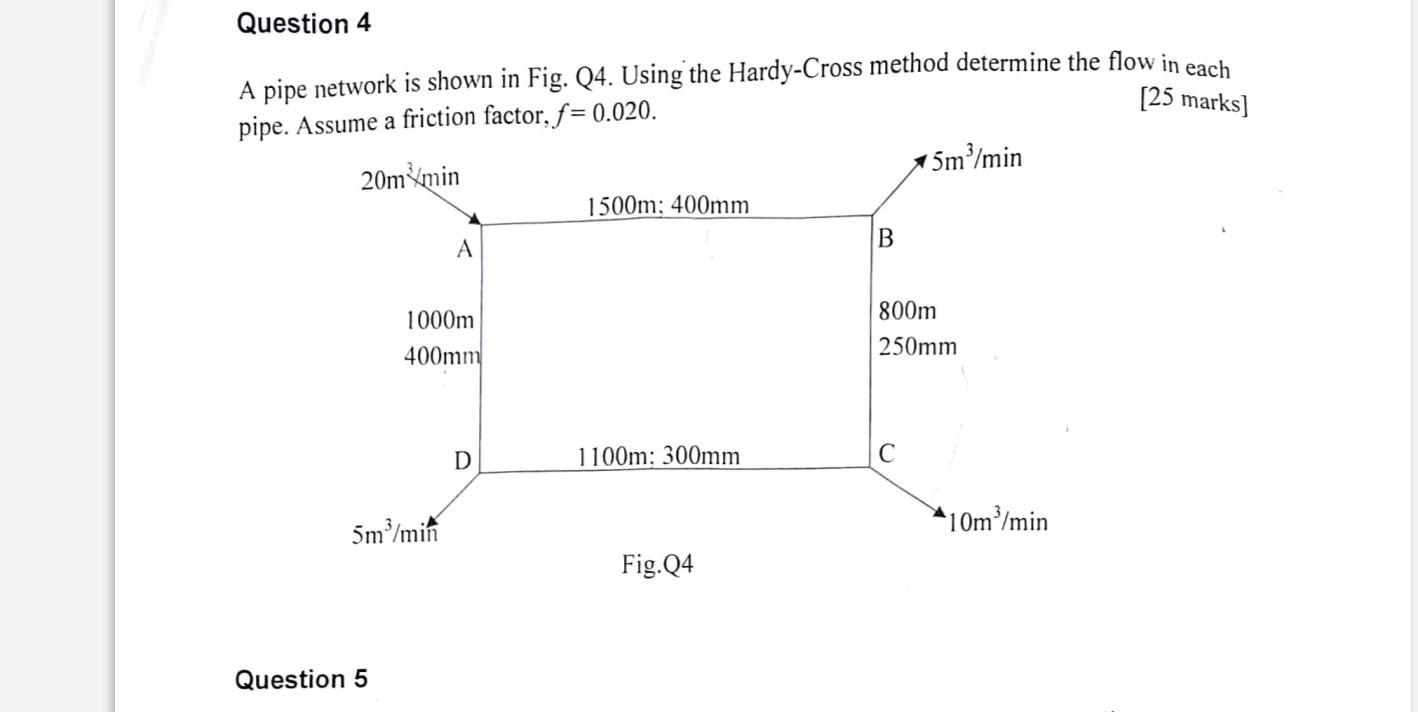

Question 4 [25 marks] A pipe network is shown in Fig. Q4. Using the Hardy-Cross method determine the flow in each pipe. Assume a friction factor, f= 0.020. 20m/min 15m3/min 1500m: 400mm B A 1000m 400mm 800m 250mm D 1100m: 300mm С 5m3/min 10m/min Fig. 24 Question 5
