Apply the force method to determine the reactions at the supports, then draw the bending moment diagram for each member.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Apply the force method to determine the reactions at the supports, then draw the bending moment diagram for each member.

Post by answerhappygod »

Apply The Force Method To Determine The Reactions At The Supports Then Draw The Bending Moment Diagram For Each Member 1
Apply The Force Method To Determine The Reactions At The Supports Then Draw The Bending Moment Diagram For Each Member 1 (135.28 KiB) Viewed 22 times

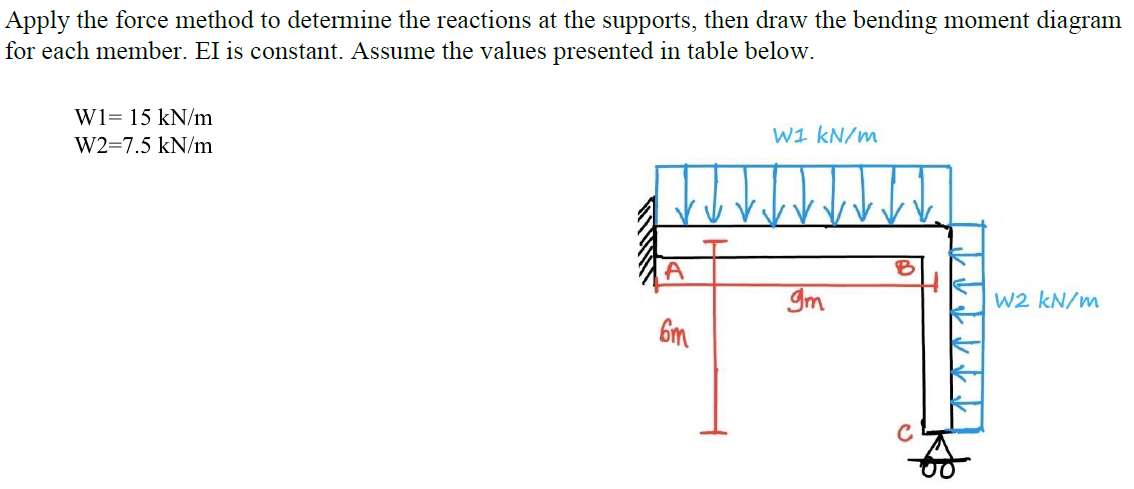

Apply the force method to determine the reactions at the supports, then draw the bending moment diagram for each member. El is constant. Assume the values presented in table below. W1= 15 kN/m W2=7.5 kN/m W1 kN/m Im W2 kN/m 6m
