From the photo, provide assumed force (central, distributed, individual), torque or stress and conduct static stress ana

[answerhappygod]

From the photo, provide assumed force (central, distributed,
individual), torque or stress and conduct static stress analysis.
Craft paper for data, results and discussions. Photocapture all
parameters in the contour maps and their corresponding figures.
Provide the number of mesh and nodes. Interpret and analyzed the
data by answering these problems:
Where are the maximum and minimum parameters values(can be seen
in contour map ex. force, factor of safety, deflection, strain,
etc..) located? Why? Explain in detail. Provide support form books,
ebooks, handbooks or journals. Cite references properly as per APA
7th style.
What do these values suggest in our design? Why? Explain in
detail. Provide support from books, ebooks, handbooks or journals.
Cite references properly as per APA 7th style.

From The Photo Provide Assumed Force Central Distributed Individual Torque Or Stress And Conduct Static Stress Ana 1 (67.17 KiB) Viewed 31 times

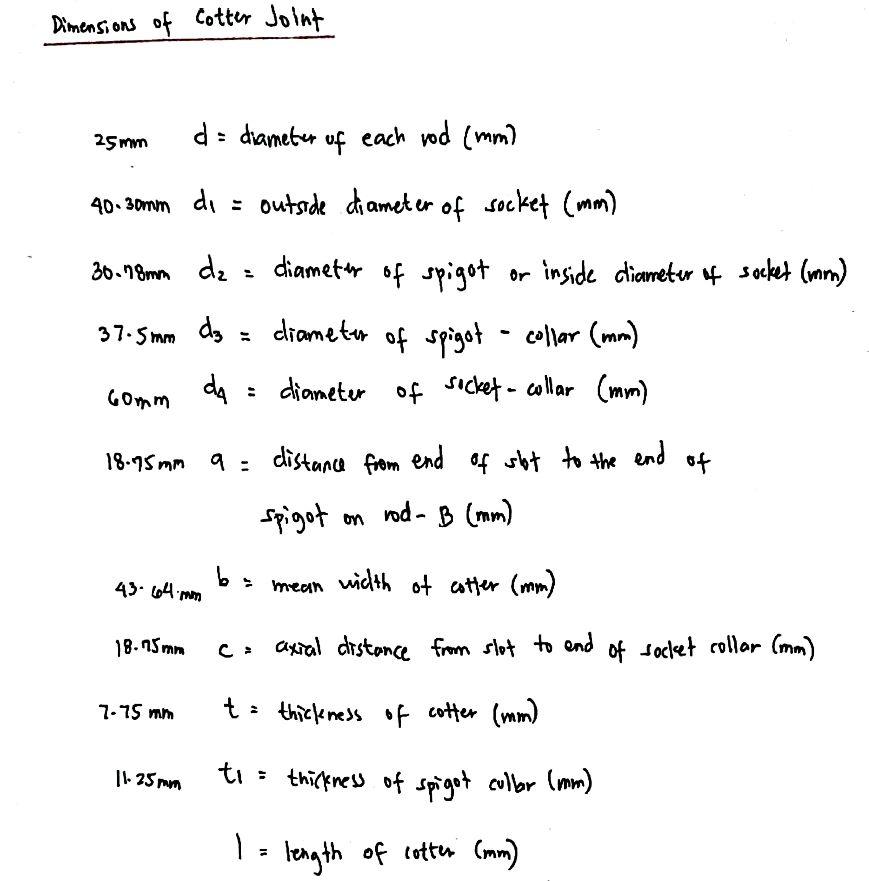

Dimensions of Cotter Joint 25 mm d: diameter of each rod (mm) 40.30mm di = outside diameter of socket (mm) = 30.18mm dz - diameter of spigot or inside diameter of socket (mm) 37.5mm ds = diameter of spigot - collar (mm) da : diameter of socket-collar (mm) = Gomm 18.75mm a = distance from end of shot to the end of spigot on rod-B (mm) 43. 64.mm b = mean wichth of esther (mm) 18.15 mm c = axial distance from slot to end of socket collar (mm) 7.75 mm t = thickness of cotter (mm) 11- 25 mm to = thickness of spigot collar (mm) I length of lotter (mm)
