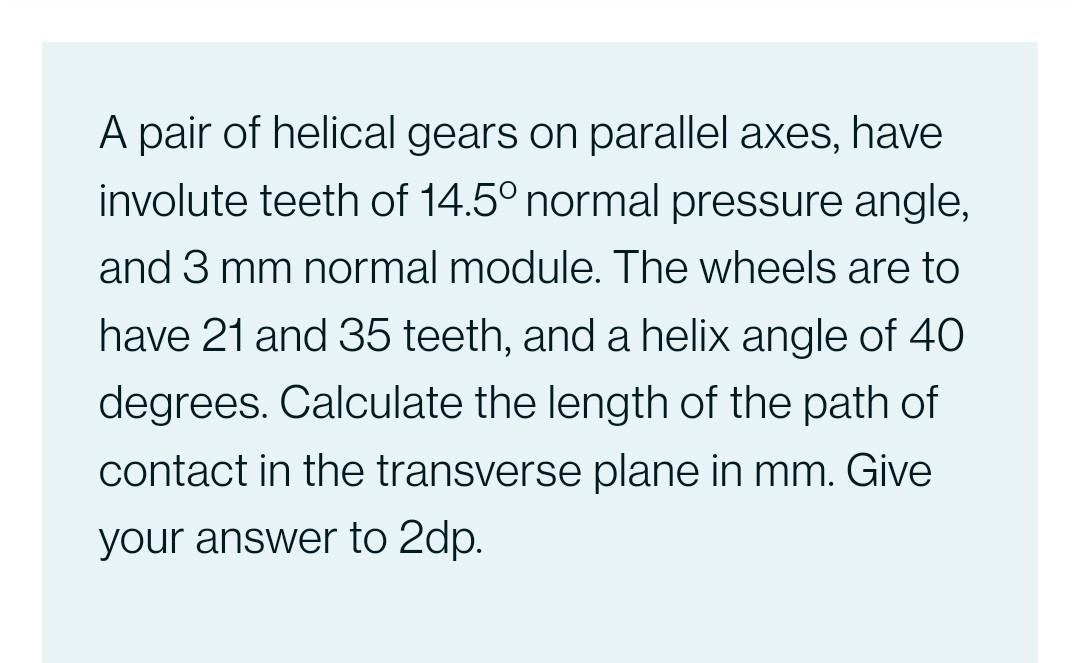

A pair of helical gears on parallel axes, have involute teeth of 14.5° normal pressure angle, and 3 mm normal module. The wheels are to have 21 and 35 teeth, and a helix angle of 40 degrees. Calculate the length of the path of contact in the transverse plane in mm. Give your answer to 2dp.

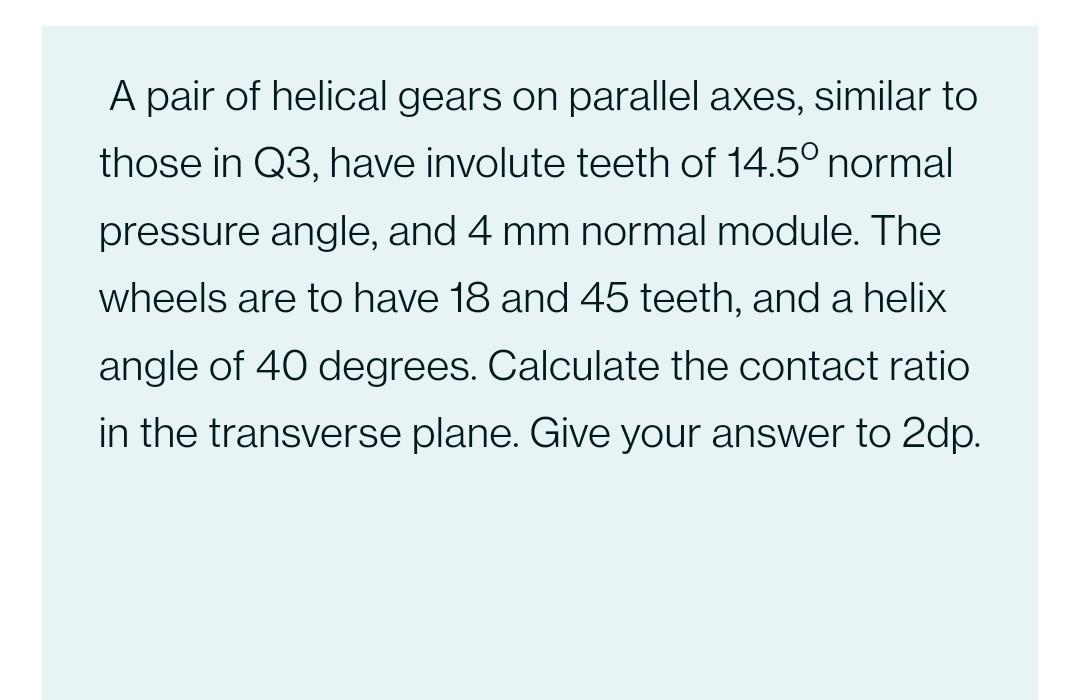

A pair of helical gears on parallel axes, similar to those in Q3, have involute teeth of 14.5° normal pressure angle, and 4 mm normal module. The wheels are to have 18 and 45 teeth, and a helix angle of 40 degrees. Calculate the contact ratio in the transverse plane. Give your answer to 2dp.
