QUESTION - 4 Draw the following views to describe the object shown in Figure Q4. a FRONT view from A a SIDE view from B

Post by answerhappygod »

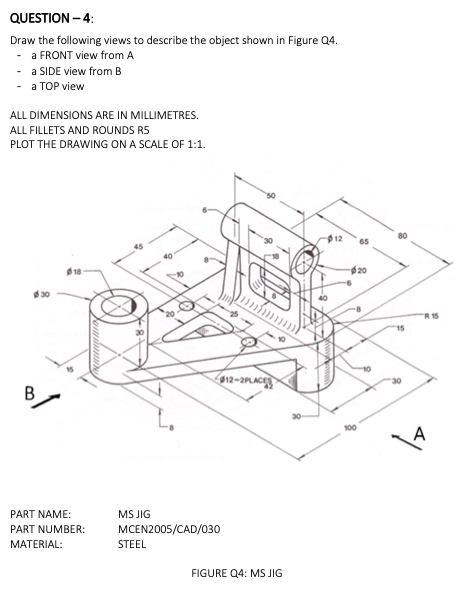

Question 4 Draw The Following Views To Describe The Object Shown In Figure Q4 A Front View From A A Side View From B 1
Question 4 Draw The Following Views To Describe The Object Shown In Figure Q4 A Front View From A A Side View From B 1 (130.59 KiB) Viewed 26 times
QUESTION - 4 Draw the following views to describe the object shown in Figure Q4. a FRONT view from A a SIDE view from B - a TOP view ALL DIMENSIONS ARE IN MILLIMETRES. ALL FILLETS AND ROUNDS R5 PLOT THE DRAWING ON A SCALE OF 1:1. 10 65 40 918 020 40 R 15 15 10 012-22 JO B 30 100 a PART NAME: PART NUMBER: MATERIAL: MS JIG MCEN2005/CAD/030 STEEL FIGURE Q4: MS JIG
