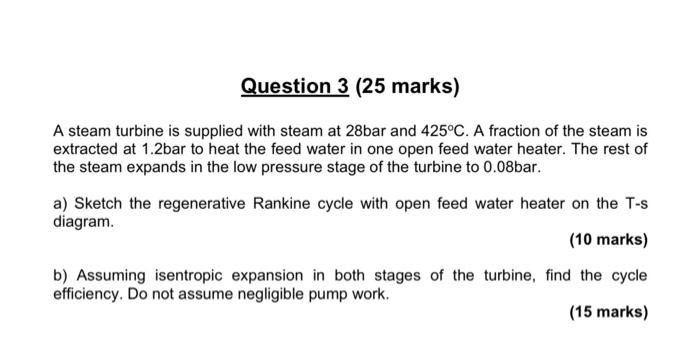

A steam turbine is supplied with steam at 28 bar and 425∘C. A fraction of the steam is extracted at 1.2bar to heat the feed water in one open feed water heater. The rest of the steam expands in the low pressure stage of the turbine to 0.08bar. a) Sketch the regenerative Rankine cycle with open feed water heater on the T-s diagram. (10 marks) b) Assuming isentropic expansion in both stages of the turbine, find the cycle efficiency. Do not assume negligible pump work. (15 marks)
