Consider the spring assemblage as shown in Figure 1 with kl=10 N/mm,k2=15 N/mm, k3=20 N/mm,k4=25 N/mm,k5=30 N/mm an

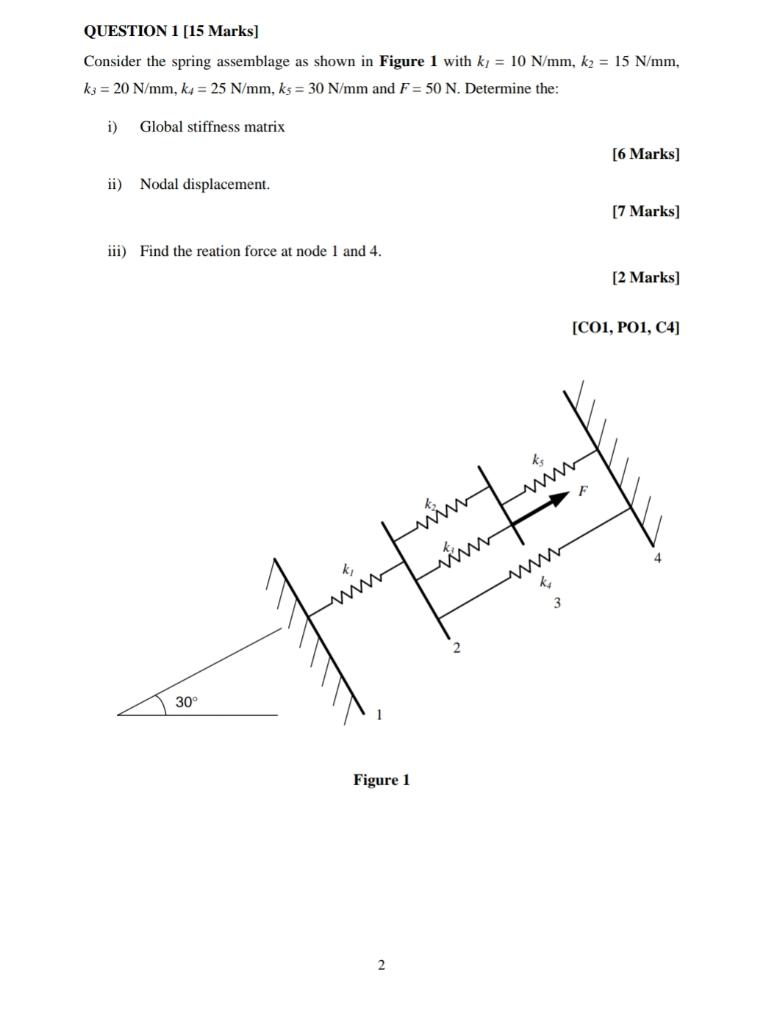

Consider the spring assemblage as shown in Figure 1 with kl=10 N/mm,k2=15 N/mm, k3=20 N/mm,k4=25 N/mm,k5=30 N/mm and F=50 N. Determine the: i) Global stiffness matrix [6 Marks] ii) Nodal displacement. [7 Marks] iii) Find the reation force at node 1 and 4. [2 Marks] [CO1,PO1,C4] Figure 1
