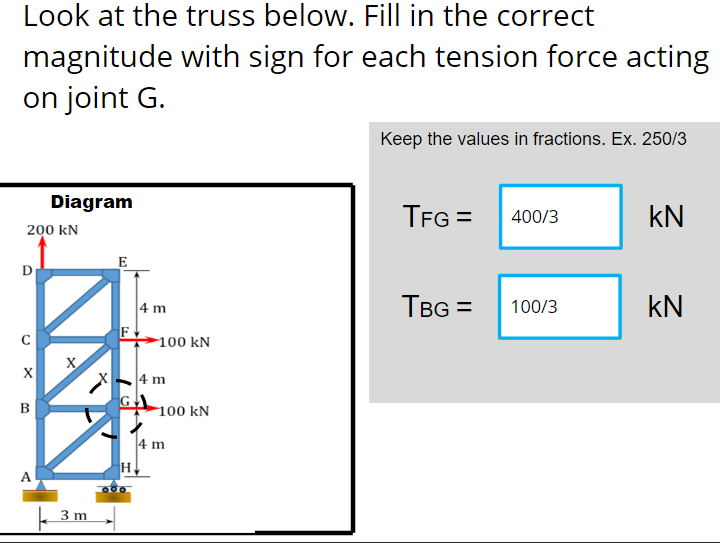

Look at the truss below. Fill in the correct magnitude with sign for each tension force acting on joint G. 200 KN D X B Diagram A X 3 m X E H. 01010 4 m 100 kN 4 m 100 kN m Keep the values in fractions. Ex. 250/3 TFG = 400/3 TBG= 100/3 KN KN
