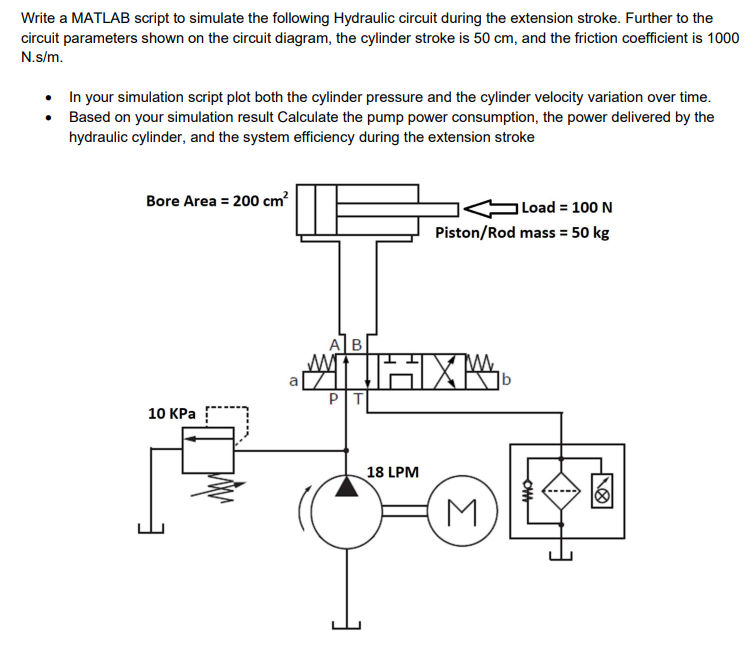

Write a MATLAB script to simulate the following Hydraulic circuit during the extension stroke. Further to the circuit parameters shown on the circuit diagram, the cylinder stroke is 50 cm, and the friction coefficient is 1000 N.s/m. In your simulation script plot both the cylinder pressure and the cylinder velocity variation over time. • Based on your simulation result Calculate the pump power consumption, the power delivered by the hydraulic cylinder, and the system efficiency during the extension stroke Bore Area = 200 cm² 10 KPa P B AB THXMb PIT| Load = 100 N Piston/Rod mass = 50 kg 18 LPM 3 OW 18
P x Acap = mx + cx + Fload
