3. Determine the reactions at A, B and C. B is smooth. (a) Draw FBD of the whole frame. (b) Draw FBD of member AB and of

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

3. Determine the reactions at A, B and C. B is smooth. (a) Draw FBD of the whole frame. (b) Draw FBD of member AB and of

Post by answerhappygod »

3 Determine The Reactions At A B And C B Is Smooth A Draw Fbd Of The Whole Frame B Draw Fbd Of Member Ab And Of 1
3 Determine The Reactions At A B And C B Is Smooth A Draw Fbd Of The Whole Frame B Draw Fbd Of Member Ab And Of 1 (57.8 KiB) Viewed 22 times

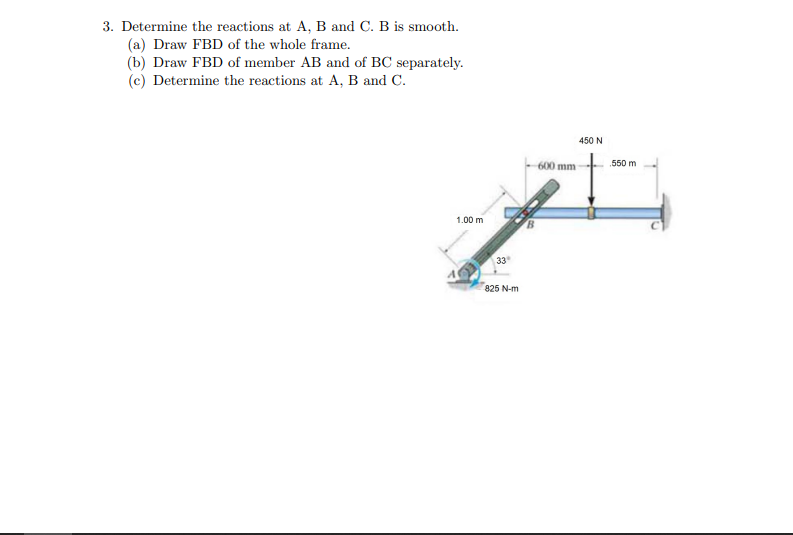

3. Determine the reactions at A, B and C. B is smooth. (a) Draw FBD of the whole frame. (b) Draw FBD of member AB and of BC separately. (c) Determine the reactions at A, B and C. 1.00 m 33 سلم 825 N-m 600 mm 450 N 550 m
