256 Welding Print Reading Part III 1. Sketch the welding symbol for the following seam weld on the adjacent incomplete s

[answerhappygod]

256 Welding Print Reading Part Iii 1 Sketch The Welding Symbol For The Following Seam Weld On The Adjacent Incomplete S 1 (34.32 KiB) Viewed 41 times

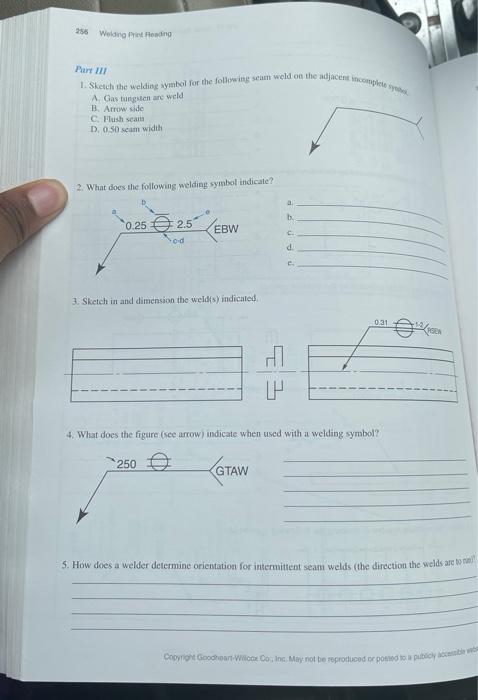

256 Welding Print Reading Part III 1. Sketch the welding symbol for the following seam weld on the adjacent incomplete syn A. Gas tungsten arc weld B. Arrow side C. Flush seam D. 0,50 seam width 2. What does the following welding symbol indicate? 0.25 €2.5 Jan 25 (200 EBW 3. Sketch in and dimension the weld(s) indicated. Al GTAW 0.31 4. What does the figure (see arrow) indicate when used with a welding symbol? 250 AGEN 5. How does a welder determine orientation for intermittent seam welds (the direction the welds are to Copyright Goodheart-Wilcox Co, Inc May not be reproduced or posted to a publicly accessible w
