The hydraulic cylinder CF, which partially controls the position of rod DE, has been locked in the position shown. Membe

Post by answerhappygod »

The Hydraulic Cylinder Cf Which Partially Controls The Position Of Rod De Has Been Locked In The Position Shown Membe 1
The Hydraulic Cylinder Cf Which Partially Controls The Position Of Rod De Has Been Locked In The Position Shown Membe 1 (210.12 KiB) Viewed 33 times

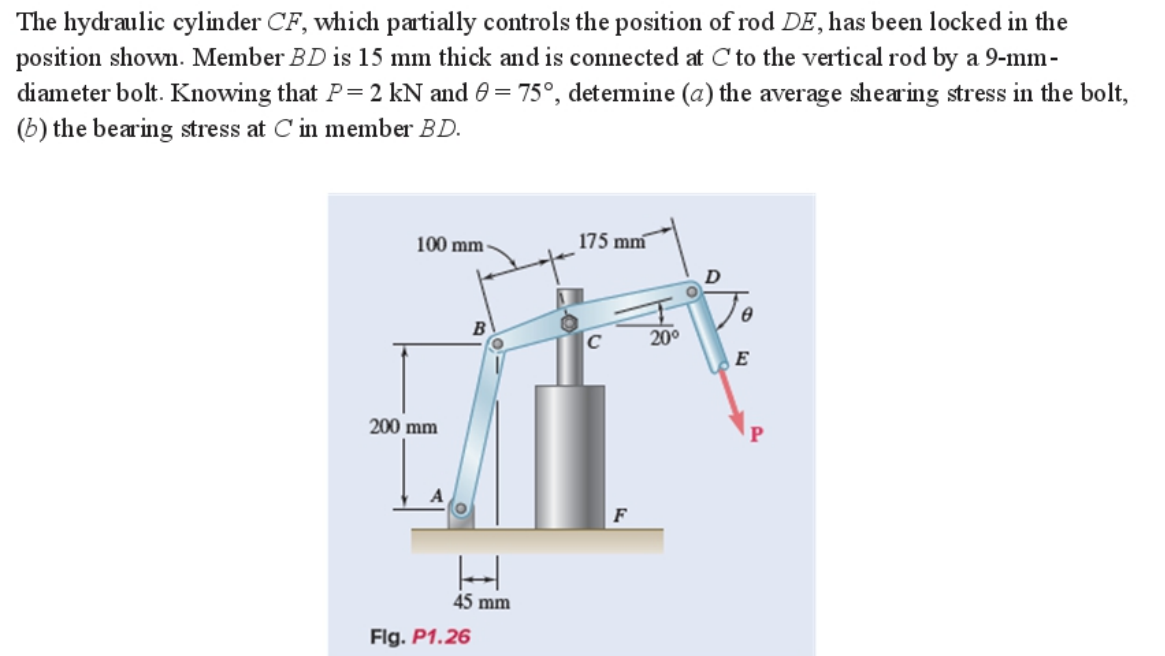

The hydraulic cylinder CF, which partially controls the position of rod DE, has been locked in the position shown. Member BD is 15 mm thick and is connected at C' to the vertical rod by a 9-mm- diameter bolt. Knowing that P = 2 kN and 0= 75°, determine (a) the average shearing stress in the bolt, (b) the bearing stress at C in member BD. 100 mm- 200 mm B H 45 mm Flg. P1.26 175 mm C F 20⁰ D E
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
