Q2 The circuit in Figure Q2 is an active filter. (a) Derive the expression for the voltage transfer function; H(s)=Vi​(s

Post by answerhappygod »

Q2 The Circuit In Figure Q2 Is An Active Filter A Derive The Expression For The Voltage Transfer Function H S Vi S 1
Q2 The Circuit In Figure Q2 Is An Active Filter A Derive The Expression For The Voltage Transfer Function H S Vi S 1 (31.94 KiB) Viewed 25 times

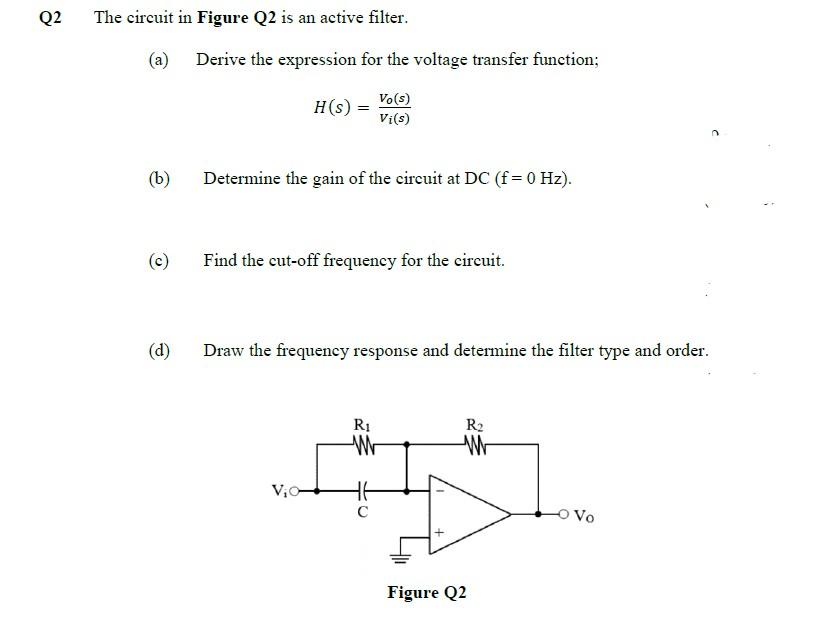

Q2 The circuit in Figure Q2 is an active filter. (a) Derive the expression for the voltage transfer function; H(s)=Vi​(s)Vo​(s)​ (b) Determine the gain of the circuit at DC(f=0 Hz). (c) Find the cut-off frequency for the circuit. (d) Draw the frequency response and determine the filter type and order. Figure Q2
