Problem 2 [30 points]: Figures below are related to a 480V, 60Hz, Y-connected, 6-pole synchronous generator: If Field TM

[answerhappygod]

Problem 2 30 Points Figures Below Are Related To A 480v 60hz Y Connected 6 Pole Synchronous Generator If Field Tm 1 (36.32 KiB) Viewed 39 times

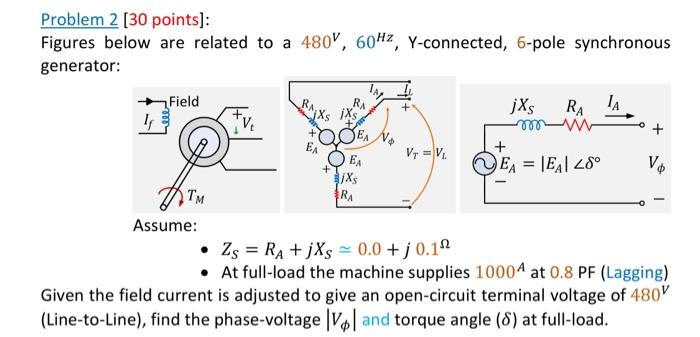

Problem 2 [30 points]: Figures below are related to a 480V, 60Hz, Y-connected, 6-pole synchronous generator: If Field TM Assume: RAY IXS RA EA EA jXs RA $ VT = VL jXs RA mm + EA = |EA| 28° V₂ Zs RA + jXS 0.0 +j 0.12 At full-load the machine supplies 10004 at 0.8 PF (Lagging) Given the field current is adjusted to give an open-circuit terminal voltage of 480 (Line-to-Line), find the phase-voltage IV and torque angle (8) at full-load.
