v1 Vcc Q3 R 5.71k Vcc Rc1 2k Q1 Vee Q4 Vcc Q2 Rc2 2k Vcc = 12V Vee = -12V C1 v2 vout Fig 2.32 2.32 1. All the transistor

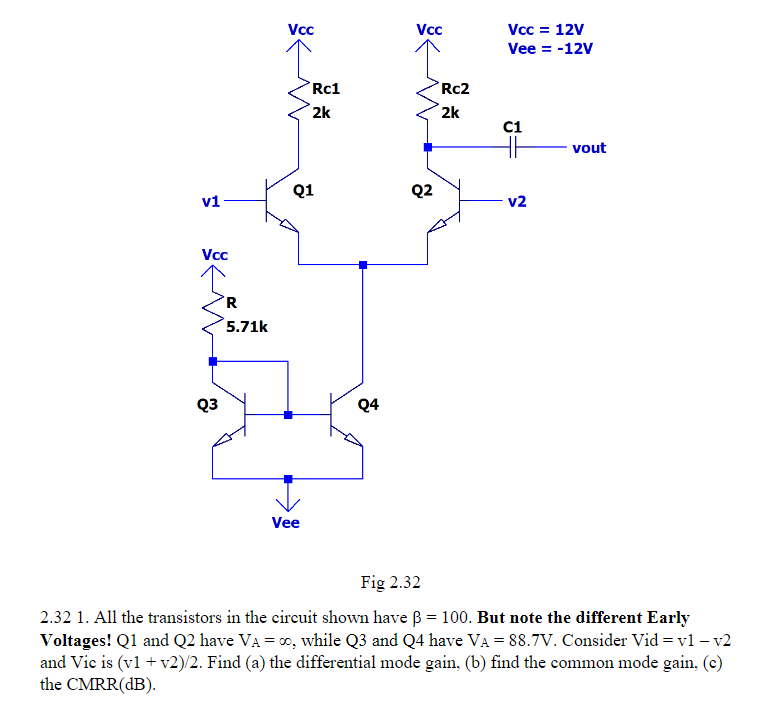

v1 Vcc Q3 R 5.71k Vcc Rc1 2k Q1 Vee Q4 Vcc Q2 Rc2 2k Vcc = 12V Vee = -12V C1 v2 vout Fig 2.32 2.32 1. All the transistors in the circuit shown have ß = 100. But note the different Early Voltages! Q1 and Q2 have VA = 00, while Q3 and Q4 have VA = 88.7V. Consider Vid=v1 - v2 and Vic is (v1 + v2)/2. Find (a) the differential mode gain, (b) find the common mode gain, (c) the CMRR(dB).
