Estimate how many logic stages a 2:1 multiplexer has ( how many AND/OR/NOT gates a signal must travel through). Use thi

Post by answerhappygod »

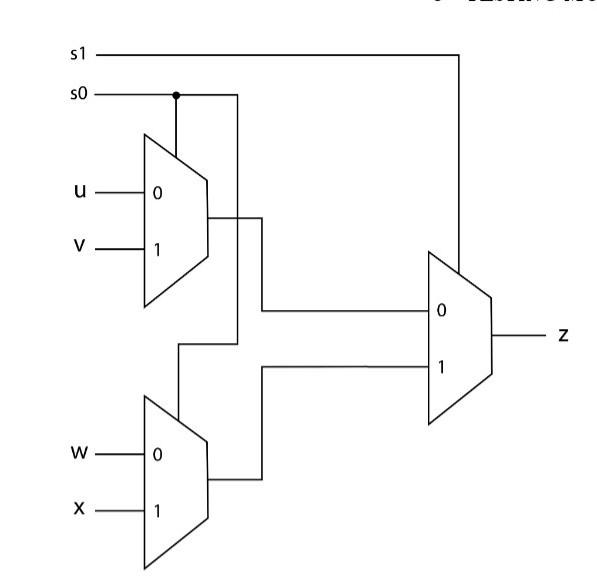

Estimate how many logic stages a 2:1 multiplexer has ( how manyAND/OR/NOT gates a signal must travel through). Use thisfigure to estimate how many logic stages a 4:1 multiplexer has,based on the implementation idea in the following image. How manystages do you think a 8:1 multiplexer should have?
Estimate How Many Logic Stages A 2 1 Multiplexer Has How Many And Or Not Gates A Signal Must Travel Through Use Thi 1
Estimate How Many Logic Stages A 2 1 Multiplexer Has How Many And Or Not Gates A Signal Must Travel Through Use Thi 1 (17.8 KiB) Viewed 32 times
s1 SO u V W X 0 1 0 1 0 1 N
